Qu-7D 32IN / 20OUT 96kHz Digital Mixer 16x16 Dante

« return to previous page

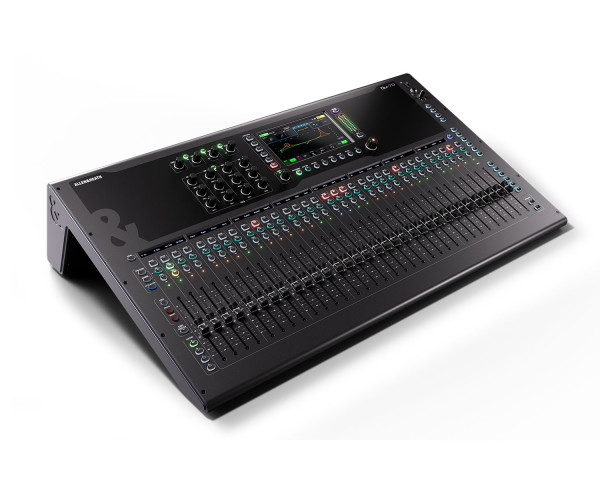

Allen & Heath Qu-7D 32IN / 20OUT 96kHz Digital Mixer 16x16 Dante - Main Image
Allen & Heath Qu-7D 32IN / 20OUT 96kHz Digital Mixer 16x16 Dante - Image 1
Allen & Heath Qu-7D 32IN / 20OUT 96kHz Digital Mixer 16x16 Dante - Image 2
Allen & Heath Qu-7D 32IN / 20OUT 96kHz Digital Mixer 16x16 Dante - Image 3
Price:
RRP: £2,999.00 inc VAT
Code:
ALLQU7D
Manufacturer Code:
QU-7D
Brand:
Allen & Heath

Quantity required:

Main Features

  • 33 100mm Motorised Faders
  • 32 XLR/Jack ‘Combi’ Mic/Line Input Sockets
  • 20 XLR Output Sockets
  • 16×16 48/96 kHz Dante interface with dedicated locking EtherCon port
  • 96kHz XCVI Core
  • 6 Multi-FX Engines with dedicated Stereo Returns
Share:

Qu-7D 32IN / 20OUT 96kHz Digital Mixer 16x16 Dante

Qu-7 takes the ever-popular Qu-32 form factor and adds Allen & Heath’s powerful XCVI processing, new FX engines and Everything I/O connectivity. There’s also a capacitive touchscreen, channel strip displays and fully customisable layers.

In addition, the Qu-7D variant features a built-in 16x16 48/96 kHz Dante port for interoperability with other Dante enabled equipment.

Both the Qu-7 and Qu-7D are 32 channel, 96kHz digital audio mixers, combining high performance audio processing and professional features with ease of use and hands-on control.

Product Features

Processing & FX

  • 96kHz XCVI Core
  • 6 Multi-FX Engines with dedicated Stereo Returns
  • DEEP Processing Ready

Mix Architecture

  • 38 Inputs to Mix (32x Mono/Linkable, 3x Stereo)
  • 12 Mixes (6 Mono/Linkable Aux/Group, 6 Stereo Aux/Group)
  • 4 Mono/Linkable Matrix
  • Stereo Main LR Output

I/O

  • 32 XLR/Jack ‘Combi’ Mic/Line Input Sockets
  • 2 Stereo Line Input Sockets (each 2x TRS)
  • 20 XLR Output Sockets
  • 1 XLR Talkback Socket
  • 2 TRS Output Sockets
  • 1 AES3 Stereo Digital Output Socket
  • 128×128 Intelligent SLink Port for Everything I/O expansion and system connections
  • 16×16 48/96 kHz Dante interface with dedicated locking EtherCon port (Qu-7D only)
  • Stereo Headphone Output

Control

  • 7” Capacitive Touchscreen
  • 33 100mm Motorised Faders
  • 4 Channel Strip Layers
  • Remote control via free apps – Windows/MacOS/iOS/Android
  • 8 SoftKeys
  • Configurable single/dual Footswitch Connection

Recording & Playback

  • USB-A For stereo audio record/playback and data transfer
  • USB-C Audio interface for multichannel record/playback (32×32)
  • SD Card Slot for multichannel audio recording or playback (16×16@96kHz, 32×32@48kHz)

Misc

  • 12V Lamp Socket
  • Configurable Chromatic Channel Meter LED’s
