R.15-3696 6.5

« return to previous page

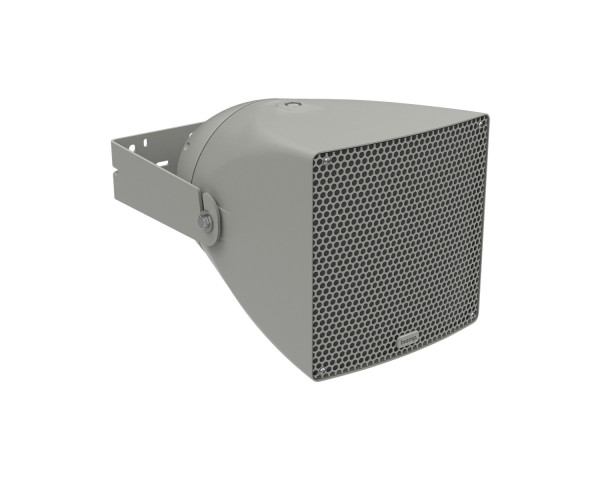

Community R.15-3696 6.5 3-Way Weather-resistant Loudspeaker 90x60° Grey - Image 1

Community R.15-3696 6.5 3-Way Weather-resistant Loudspeaker 90x60° Grey - Image 2

Community R.15-3696 6.5 3-Way Weather-resistant Loudspeaker 90x60° Grey - Image 3

Community R.15-3696 6.5 3-Way Weather-resistant Loudspeaker 90x60° Grey - Image 4

Price:: RRP: £501.60 inc VAT
Code:: COMR153696G
Manufacturer Code:: 910.2264.900
Brand:: Community

Main Features

Full-range background music and clearly intelligible voice paging
Ideal for sports field applications, stadium concourses, warehouses and more
High sensitivity and low amplifier power draw reduces total system costs
Weather-resistant, compact, matte finish high impact ABS modified-trapezoidal enclosure
Water-resistant grille & LF driver cone, polymer HF & MR diaphragm, moisture-sealed crossover
100W Autoformer (standard), selectable 4 ohm or 70V/100V operation

R.15-3696 6.5" 3-Way Weather-resistant Loudspeaker 90x60° Grey

The Community R.15-3696 is a full-range, three-way triaxial loudspeaker that delivers excellent voice intelligibility and quality music playback, similar to the best-selling R.35-3896 loudspeaker, but in a more compact housing ideal for large installations where cost is a primary consideration. The R.15-3696 is a fully horn-loaded triaxial three-way, full-range loudspeaker system designed to provide high quality voice and music reproduction in applications requiring extreme weather resistance.

It is designed to withstand long-term exposure to tough, environmental conditions and to provide musical performance normally only associated with indoor loudspeakers. The R.15-3696 features Biamp's innovative MultiSource Waveguide™ horn design; the output from the dual midrange compression drivers and 1-inch exit HF driver are combined seamlessly into a single time-coherent source, resulting in excellent musicality, intelligibility and dispersion consistency. The high efficiency 6.5-inch LF provides high sensitivity and full LF extension into the male voice speech range. The low LF/MR passive crossover point results in improved mid-range pattern control and elimination of horn colouration in the LF response.

The R.15-3696 is built using components engineered for the harshest environments, including heavily plated and powder coated internal components, conformal coated crossover components, water-resistant driver, and IP54 ingress protection for the grille. The steel bracket is heavily zinc-plated and powder coated and attached using stainless steel and brass hardware.

The R.15-3696 carries a 5-year product warranty and a 15-year enclosure warranty.

Product Features

Full-range background music and clearly intelligible voice paging
Ideal for sports field applications, stadium concourses, warehouses, gymnasiums, and other similar highly reverberant spaces
High sensitivity and low amplifier power draw reduces total system costs
Weather-resistant, compact, matte finish paintable high impact ABS plastic modified-trapezoidal enclosure
Water-resistant grille and LF driver cone, polymer HF and MR diaphragm, moisture-sealed crossover
100W Autoformer (standard), selectable 4 ohm or 70V/100V operation
Corrosion-resistant zinc-plated, powder-coated low-profile steel yoke and grill
5-year product warranty and a 15-year enclosure warranty
Compliant with the US Trade Agreement Act (TAA)
IP54 Rated

Product Specifications

Technical Specifications

Operating Mode: Passive, selectable low impedance or 70 V / 100 V
Operating Environment: Indoor or outdoor direct exposure
Operating Range: (-10 dB)2 142 Hz to 19.4 kHz
Nominal Beamwidth: (H x V) 90° x 60°
Transducers:
- LF 1 x 6.5" (165 mm) Woofer with hydrophobic treatment
- MR 2 x 2.35" (60 mm) MultiSource Waveguide™ compression drivers
- HF 1 x 0.8" (21 mm) exit polymer diaphragm compression driver with 1" (25mm) voice coil
Sensitivity: @ 1 m 103 dB (2.83 V) 100 dB (1 W, 4 Ω)
Nominal Continuous Power
Handling: Passive 20 V (100 W, 4 Ω rated impedance)
Nominal Maximum SPL (Processed):
Passive Continuous: 116 dB
Peak: 122 dB
Rated Continuous Voltage: Passive 21.9 V (27 dBV)
Rated Maximum SPL (Processed):
- Continuous:
  - 116 dB Opt EQ
  - 118 dB No EQ
- Peak:
  - 128 dB Opt EQ
  - 130 dB No EQ
Autoformer:
- 70 V: 100 W, 50 W, 25 W, 12.5 W, 6.25 W
- 100 V: 100 W, 50 W, 25 W, 12.5 W
Crossover / Protection: 950 Hz and 2.6 kHz crossover
Required Accessories: 110 Hz, 12 dB / oct. high pass filter; DSP presets for ALC, Voltera, and Tesira
Recommended Amplifiers: 100 W - 200 W, into 4 Ω (20 V - 28 V)

Physical Specifications

Input Connection: Terminal Strip for low impedance or constant voltage operation
Controls: 70 V / 100 V operation jumper
Mounting Provisions: Four (4) M8 rigging points
Environmental Rating:
- IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation),
- IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2),
- IEC 60068-2-60 (Chlorine),
- IEC 600368-2-1 (Cold Operational)
Dimensions H x W x D: 235 x 235 x 356 mm (9.25" x 9.25" x 14.00")
Weight (loudspeaker only): 5.7 kg (12.6 lbs)
