R189W-A Microflex Mini-Shotgun Capsule White

« return to previous page

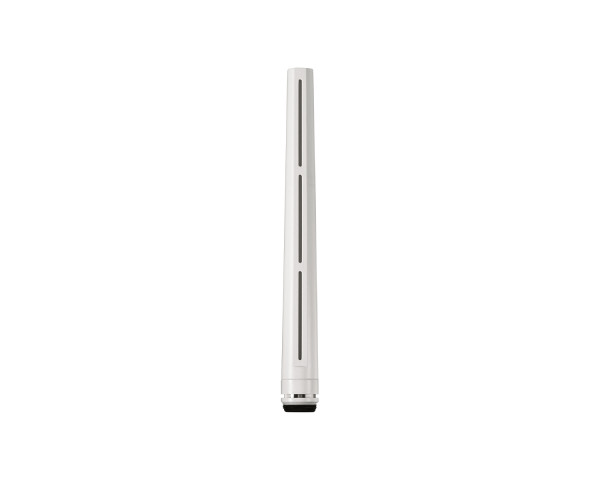

Shure R189W-A Microflex Mini-Shotgun Capsule White - Main Image
Price:
RRP: £111.60 inc VAT
Code:
SHUR189WA
Manufacturer Code:
R189W-A
Brand:
Shure

Quantity required:

Main Features

  • Highly directional lobar polar pattern
  • Threaded 1 cm capsule
  • Compatible with all Microflex (MX/MXW/MXC) Gooseneck and Overhead Mics
  • CommShield® Technology for excellent RF immunity
  • Features a 100-degree pickup area (narrower than a supercardioid or cardioid)
  • Finish: White
Share:

R189W-A Microflex Mini-Shotgun Capsule White

The R189 mini-shotgun microphone cartridge is a highly directional microphone that threads onto all Microflex® (MX) gooseneck and overhead microphones, including those used with Microflex Wireless and Microflex Complete. The narrow pickup pattern rejects ambient noise and prevents feedback in rooms with sound reinforcement, making it an ideal choice for noisy conference rooms and live presentations.

Product Features

  • Highly directional lobar polar pattern
  • Threaded 1 cm cartridge compatible with all Microflex (MX) gooseneck and overhead models, including Microflex Wireless (MXW) and Microflex Complete (MXC)
  • CommShield® Technology for excellent RF immunity
  • Features a 100-degree pickup area (narrower than a supercardioid or cardioid)
  • Finish: White

Product Specifications

  • Transducer Type:  Electret Condenser
  • Polar Pattern:  Lobar
  • Frequency Response:  50 to 17,000 Hz
  • Output Impedance:  170
  • Sensitivity (open circuit voltage, @ 1 kHz, typical):  –33 dBV/Pa (22 mV)a
  • Maximum SPL (1 kHz at 1% THD):  121 dB SPL
  • Signal-to-Noise Ratio:  68 dB
  • Dynamic Range:  95 dB SPL
  • Common Mode Rejection:  45 dB, minimum
  • Preamplifier Output Clipping Level:  -8 dBV (0.4V)
  • Self Noise (equivalent SPL, A-weighted, typical):  36 dB
  • Operating Temperature Range -18°C (0°F) to 57°C (135°F)
  • Polarity:
    • 3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
    • 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector
  • Power Requirements:  Phantom Power, 48-52V DC, 8.0mA
