RDM XS8 8-Way DMX/RDM Rackmount Splitter 1U

« return to previous page

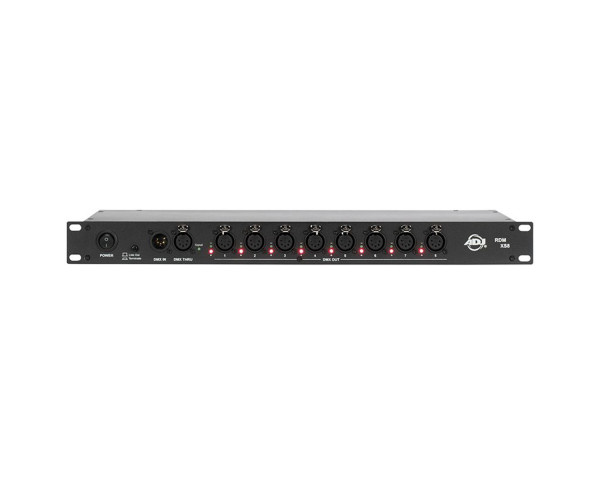

ADJ RDM XS8 8-Way DMX/RDM Rackmount Splitter 1U - Main Image
ADJ RDM XS8 8-Way DMX/RDM Rackmount Splitter 1U - Image 1
ADJ RDM XS8 8-Way DMX/RDM Rackmount Splitter 1U - Image 2
ADJ RDM XS8 8-Way DMX/RDM Rackmount Splitter 1U - Image 3
ADJ RDM XS8 8-Way DMX/RDM Rackmount Splitter 1U - Image 4
ADJ RDM XS8 8-Way DMX/RDM Rackmount Splitter 1U - Image 5
Price:
RRP: £202.80 inc VAT
Code:
ADJ1321000087
Manufacturer Code:
1321000087
Brand:
ADJ

Quantity required:

Main Features

  • 1 x 5-pin XLR Input
  • 1 x 5-pin XLR Thru
  • 8 x 5-pin XLR Outputs
  • Link Out Termination Switch
  • DMX / RDM Protocol Switch
  • 19-inch Rack Mount (1 rack space)
Share:

RDM XS8 8-Way DMX/RDM Rackmount Splitter 1U

The ADJ Lighting RDM XS8 is a 19-inch rack mount, 8-way DMX and RDM data splitter. With one 5-pin input, one 5-pin thru and eight 5-pin outputs, the RDM XS8 makes running DMX cables easier and more efficient. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient installation into a 19-inch rack mount cabinet.

Its slim 1U configuration includes 1x 5-pin XLR input, 1x 5-pin XLR thru, 8x 5-pin XLR outputs, plus a Link Out Termination Switch and a DMX/RDM Protocol Switch.

Product Features

  • 1 x 5-pin XLR Input
  • 1 x 5-pin XLR Thru
  • 8 x 5-pin XLR Outputs
  • Link Out Termination Switch
  • DMX / RDM Protocol Switch
  • 19-inch Rack Mount (1 rack space)

Product Specifications

  • Protocols:
    • DMX512
    • RDM
  • Electrical:
    • AC Input: 100-230V 50/60Hz
    • Power Consumption: 3.3W @ 230V
    • Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
  • Thermal:
    • Ambient Operational Temperature: -20°C to 45°C
    • Humidity: <75%
    • Storage Temperature: 25°C
  • Dimensions & Weight:
    • Length: 152.4mm
    • Width: 482mm
    • Height: 44mm
    • Weight: 2.21kg

Product Downloads

Product Video
