Main Features
Reversible module for 2-Bay or 8-Bay converter rack (sold separately)
Video Input: 2 x 12G/6G/3G/HD/SD SDI BNC
Loop-thru: 2 x 12G/6G/3G/HD/SD SDI BNC
Video Output: Singlemode OpticalCON DUO
Video Format Support: 12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
SMPTE Standards: 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 Mon OpticalCON DUO

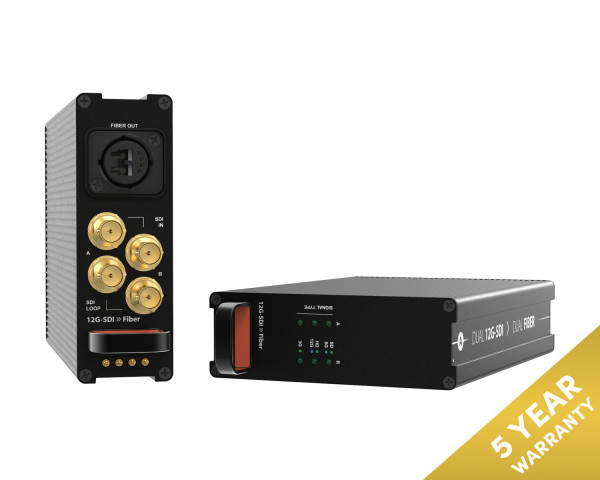

Reversible Video Converter DUAL 12G-SDI to Fibre SM OpticalCONDuo
The Dual SDI to Fiber Reversible Module fits in the 2-Bay or 8-Bay Reversible Rackmount Converter system.
The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.
Product Features
Reversible module for 2-Bay or 8-Bay converter rack (sold separately)
Video Input: 2 x 12G/6G/3G/HD/SD SDI BNC
Loop-thru: 2 x 12G/6G/3G/HD/SD SDI BNC
Video Output: Singlemode OpticalCON DUO
Video Format Support: 12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
SMPTE Standards: 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 Mon OpticalCON DUO
Product Specifications
Connections
Video Input: 2 x 12G/6G/3G/HD/SD SDI BNC
Loop-thru: 2 x 12G/6G/3G/HD/SD SDI BNC
Video Output: Singlemode Optical SDI on OpticalCON DUO
Supported Signals
Video Format Support: 12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
SMPTE Standards: 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M
Physical
Height: 121.5 mm (4.78 in)
Depth: 225 mm (8.85 in)
Width: 41 mm (1.61 in)
Weight: 710 g (1.56 lbs)
Environmental
Relative Humidity: 0% to 90% non-condensing
Operating Temperature: 0-40 °C
Power Requirements
Power Supply: Reversible redundant power fed by XVVRF2 or XVVRF8 (2-Bay or 8-Bay Rackmount Frame)
