Main Features
Analogue I/O: 16 inputs / 8 outputs
Dante: 10 receive / 16 transmit channels
Comprehensive display and local control of gain, delay and other parameters.
Dual power supply units are built in for high reliability.

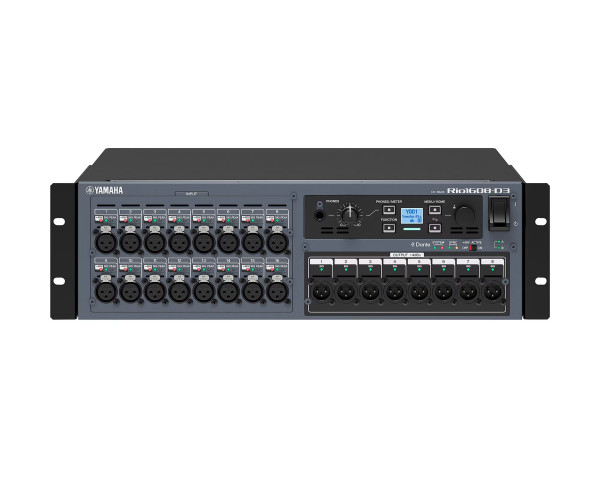

Rio1608-D3 Dante Network Rack 16in/8out with Dual PSU and OLED
This Dante-compatible unit features 16 analogue inputs and 8 analogue outputs, enabling flexible system configuration with Yamaha digital mixers and processors. The Rio1608-D3 is housed in a sleek, sturdy chassis and features a redundant power supply that ensures serious reliability, while the newly added headphone socket and output delay provide additional versatility.
Product Features
Analogue I/O: 16 inputs / 8 outputs
Dante: 10 receive / 16 transmit channels
Comprehensive display and local control of gain, delay and other parameters.
Dual power supply units are built in for high reliability.
Onboard headphone socket
Power consumption: 60 W
Dimensions (WxHxD): 480 x 132 x 370 mm (18.9” x 5.2” x 14.6”)
Signal delay: Less than 1.7 ms, Rio-D3 INPUT to Rio-D3 OUTPUT connect with DM7 using Dante, Fs=96 kHz. Dante Receive Latency set to 0.25 msec
Total harmonic distortion: Less than 0.05% +4 dBu@20 Hz - 20 kHz, GAIN: -6 dB into 600 Ω, Less than 0.15% +4 dBu@20 Hz - 20 kHz, GAIN: +66 dB into 600 Ω
Frequency response: +0.5, –1.5 dB 20 Hz - 20 kHz, refer to +4 dBu output @1 kHz, input to output, Fs= 48 kHz or 96 kHz
Dynamic range: 120 dB typ., DA Converter, 115 dB typ., Input to Output, GAIN: -6 dB
Hum & noise level
Equivalent input noise: -128 dBu typ., GAIN: +66 dB
Residual output noise: -93 dBu, main stereo channel off
Dimensions WxHxD: 480 mm (18.9") x 132 mm (5.2") x 370 mm (14.6")
Net weight: 9.4 kg (20.7 lb)
Others: NC Value: Fan Speed LOW: NC=15 / HIGH: NC=25 (Measurement position: 1 m from the front of the unit), Operating temperature range: 0 - 40°C, Storage temperature range: -20 - 60°C
