S4.04H UHF Handheld Radio Mic System CH70

« return to previous page

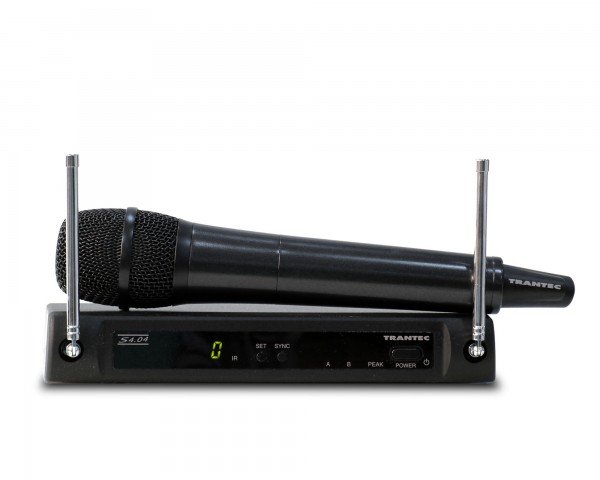

Trantec S4.04H UHF Handheld Radio Mic System CH70 - Main Image
Price:
RRP: £262.80 inc VAT
Code:
TRAS404HD
Manufacturer Code:
S4.04-HD-EB-GD5
Brand:
Trantec

Quantity required:

Main Features

  • Wireless handheld microphone and receiver system
  • Broadcasts on free channel 70 frequency
  • Channel number setting by manual
  • Channel number setting by Infrared synchronization
  • Channel scan
  • Battery lasts Approximately 10 hours
Share:

S4.04 Series Handheld Microphone System Ch 70

The S4.04 Series Handheld microphone system comes with a wireless handheld microphone and a UHF wireless receiver. Available on channel 70 with 4 switchable licence free frequencies and fully synthesized PLL quartz tuning technology.

Product Features

  • Wireless handheld microphone and receiver system
  • Broadcasts on free channel 70 frequency
  • Channel number setting by manual
  • Channel number setting by Infrared synchronization
  • Channel scan
  • Battery alarm
  • Battery lasts Approximately 10 hours

Product Specifications

Receiver

  • Diversity Reception:  Antenna Diversity
  • Sensitivity:  10uV at 45dBA, S/N
  • Squelch:  Tone SQ, Carrier SQ, Noise SQ
  • Audio Frequency Response:  50Hz – 15kHz
  • Audio Output Level (Max.)
    • Balanced (XLR socket): -20dBu, Unbalanced
    • (1/4″ jack socket): 10dBu
  • Power Supply:  12 VDC 500mA
  • Dimensions:  215(W) x 39(H) x 102(D)mm
  • Weight:  480g

Handheld Transmitter

  • RF Carrier Power:  10 mW
  • Audio Frequency Response:  80 Hz – 15kHz
  • Audio Input Level:  140 dSBPL (maximum)
  • Battery Life:  Approx. 10 hours
  • Power Supply:  1 AA size battery, 1.5V
  • Finish:  Resin, Coating
  • Dimensions:  250 x 55mm
  • Weight:  245g with battery
