S4.10W UHF Headworn System with HM66 Headmic + AB1000 CH70

« return to previous page

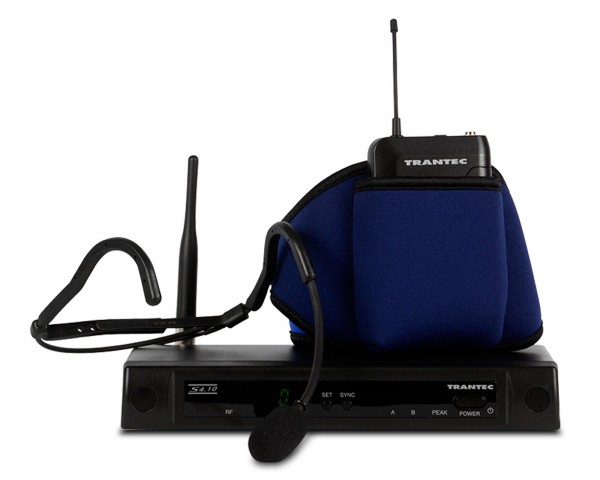

Trantec S4.10W UHF Headworn System with HM66 Headmic + AB1000 CH70 - Main Image
Trantec S4.10W UHF Headworn System with HM66 Headmic + AB1000 CH70 - Image 1
Trantec S4.10W UHF Headworn System with HM66 Headmic + AB1000 CH70 - Image 2
Trantec S4.10W UHF Headworn System with HM66 Headmic + AB1000 CH70 - Image 3
Trantec S4.10W UHF Headworn System with HM66 Headmic + AB1000 CH70 - Image 4
Price:
RRP: £430.80 inc VAT
Code:
TRAS410W
Manufacturer Code:
S4.10-W-EB-GD4
Brand:
Trantec

Quantity required:

Main Features

  • 4 switchable licence free frequencies available
  • Up to 10 simultaneous channels
  • Fully synthesised PLL quartz tuning technology
  • Receiver LED's show AF peak level, RF level & diversity channel A or B
  • Diversity operation with detachable antenna
  • Professional metal enclosure
Share:

S4.10-W-EB-GD4 Aerobic Headset System Ch 70

The S4.10-W-EB-GD4 comes in channel 70 with four licence free frequencies and comes with one Beltpack Transmitter, one Headset Microphone (MIC-SJ66 in either blue, black or yellow) and one Neoprene Aerobic Belt (ACC-AB1000).

Product Features

  • 4 switchable licence free frequencies available
  • Up to 10 simultaneous channels
  • Fully synthesised PLL quartz tuning technology
  • Receiver LED’s show AF peak level, RF level & diversity channel A or B
  • Diversity operation with detachable antenna
  • Professional metal enclosure
  • 19” rack mount option for one or two receivers

Product Specifications

Receiver

  • Diversity Reception:  Antenna Diversity
  • Sensitivity:  10uV at 45dBA, S/N
  • Squelch:  Tone SQ, Carrier SQ, Noise SQ
  • Audio Frequency Response:  50Hz - 1.5kHz
  • Audio Output Level
  • Balanced (XLR socket): -20dBu
  • Unbalanced (1/4" jack socket): 10dBu
  • Power Supply:  12 V DC 500mA
  • Dimensions:  215(W) x 39(H) x 102(D)mm (excluding antenna and BNC)
  • Weight:  480g

Beltpack Transmitter

  • RF Carrier Power:  10mW
  • Audio Frequency Response:  50Hz - 1.5kHz
  • Audio Input Level:  -6dBV max., mic gain 0dB
  • Battery Life:  Approx. 10 hours
  • Power Supply:  1 AA size alkaline battery 1.5V
  • Finish:  Resin, coating
  • Dimensions:  62(W) x 100(H) x 25(D)mm
  • Weight:  85g with battery
