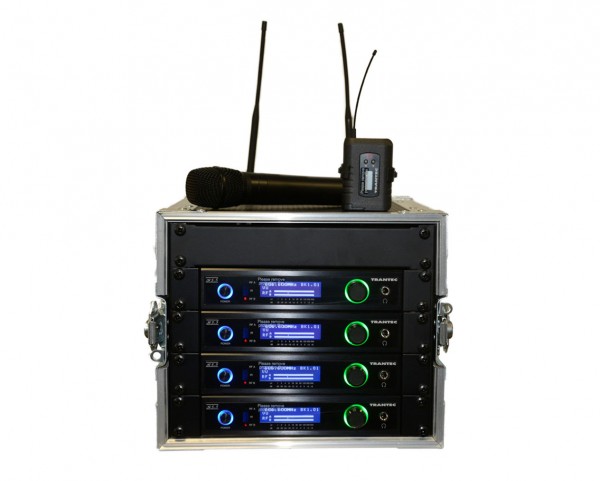

S5.5L CUBE4 CH38-41 4-Way System Excluding Remote Ant Kit

Product Features

• High quality, true diversity operation
• Up to 24 Simultaneous Channels overall
• Frequency scan facility
• USB based interactive computer monitoring
• Simple programming of transmitters via Infra-red
• Credit card size beltpack transmitters
• Single AA operation of transmitters with battery life of over 10 hours
• Professional metal enclosures for both transmitter and receiver
• Antenna Distribution
• Built In Power Supply
• Professional Flight Case

Each receiver operates 1 channel, this full rack can run up to 4 channels

Product Specifications

S5.5 Receiver - General

• Power Consumption: 300 mA (13 V DC)
• Diversity System: Space diversity (true diversity)
• Audio Output: Line: -22 dB*/ Mic: 62 dB* Line/Mic selectable, 600 Ω, balanced, XLR-3-32 type connector Headphone: max. 100 mW 16 Ω, unbalanced, phone jack -28 dB*, 600 Ω, unbalanced, phone jack
• Antenna Phantom Power: 9 V DC, 30 mA (max) (Available to turn off phantom power)
• Receiving Sensitivity: 0 dB μV or less (12 dB SINAD)
• Squelch Sensitivity: 6 - 36 dB μV variable
• Squelch System: Using together of noise SQ, carrier SQ and tone SQ
• Indicator: LCD, Power lamp, Mute lamp, ANT A/B lamp
• S/N Ratio: 110 dB or more (A-weight)
• Harmonic Distortion: 1% or less (typical)
• Frequency Response: 50 Hz - 20 kHz, ±3 dB
• Function: Audio Low-cut, High-boost and phase reverse, Battery indicator (7 steps), Headphone output, Infra-Red link port, Channel scan, Monitoring software with USB connectivity
• Frequency Bands: 606-638, 692-722, 722-752, 740-752, 794-830, 830-865 MHz
• 1400 channel capability: (24 Channels simultaneously)

S5.5 Receiver - Physical & Dimensions

• Height: 46mm
• Width: 210mm
• Depth: 210mm
• Weight: 1.3kg

S5.5 Beltpack - General

• RF Carrier Power: 30 mW or less
• Modulation System: PLL synthesizer
• Maximum Input Level: 120 dB SPL (microphone sensitivity: Gain "0")
• Audio Input Connector: TA-4 (Mini-XLR 4 pins)
• Battery: LR6 (Single AA)
• Battery Life: 10 hours (Alkaline)
• Indicator: LCD display, Power lamp
• Function: Infra-red Link Port, Battery life indicator (4 steps), Microphone sensitivity adjustment (Gain 0-9; 20dB)

S5.5 Beltpack - Physical & Dimensions

• Height: 80mm
• Width: 55mm
• Depth: 22mm
• Weight: 140g

S5.5 Reciever - General

• Power Consumption: 300 mA (13 V DC)
• Diversity System: Space diversity (true diversity)
• Audio Output: Line: -22 dB*/ Mic: 62 dB* Line/Mic selectable, 600 Ω, balanced, XLR-3-32 type connector Headphone: max. 100 mW 16 Ω, unbalanced, phone jack -28 dB*, 600 Ω, unbalanced, phone jack
• Antenna Phantom Power: 9 V DC, 30 mA (max) (Available to turn off phantom power)
• Receiving Sensitivity: 0 dB μV or less (12 dB SINAD)
• Squelch Sensitivity: 6 - 36 dB μV variable
• Squelch System: Using together of noise SQ, carrier SQ and tone SQ
• Indicator: LCD, Power lamp, Mute lamp, ANT A/B lamp
• S/N Ratio: 110 dB or more (A-weight)
• Harmonic Distortion: 1% or less (typical)
• Frequency Response: 50 Hz - 20 kHz, ±3 dB
• Function: Audio Low-cut, High-boost and phase reverse, Battery indicator (7 steps), Headphone output, Infra-Red link port, Channel scan, Monitoring software with USB connectivity

S5.5 Reciever Physical & Dimensions

• Dimensions: 210 (W) x 46 (H) x 210 (D) mm (8.27" x 1.81" x 8.27") (excluding antenna)
• Weight: 1.3kg (2.87lb)
• Frequency Bands: 606-638, 692-722, 722-752, 740-752, 794-830, 830-865 MHz
• 1400 channel capability: (24 Channels simultaneously)

S5.5 Handheld - General

• RF Carrier Power: Max. 30 mW
• Maximum Input Level: 146 dB SPL (microphone sensitivity: Gain "0")
• Audio Frequency Response: 60 Hz - 20 kHz
• Dynamic Range: 110 dB or more (with S5.5-RX)
• Battery: LR6 (Single AA)
• Battery Life: 10 hours (Alkaline)
• Indicator: LCD display, Power lamp
• Function: Mute switch, Infra-Red link port, Battery life indicator (4 steps), Microphone sensitivity adjustment (Gain 0-2; 12dB)

S5.5 Handheld - Physical & Dimensions

• Dimensions: Ø50 x 247.9 mm (Ø1.97" x 9.76")
• Weight: 380g (0.84lb) (with battery)

What's in the Box?

• 4 x 5.5 receivers
• 4 x 5.5 transmitters in any combination of handheld or beltpack
• Antenna distribution unit
• Power supply
• Rack mounting kits
• 2 x antennae
• Professional cube flight case
