Saber Spot RGBL Compact Pinspot with 20W RGBL LED

« return to previous page

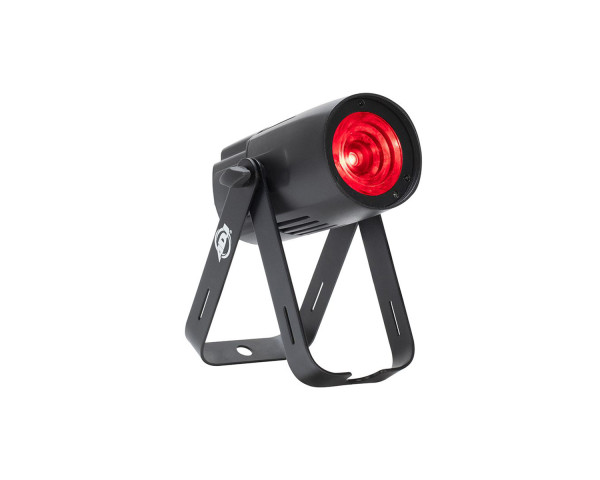

ADJ Saber Spot RGBL Compact Pinspot with 20W RGBL LED - Main Image
ADJ Saber Spot RGBL Compact Pinspot with 20W RGBL LED - Image 1
ADJ Saber Spot RGBL Compact Pinspot with 20W RGBL LED - Image 2
ADJ Saber Spot RGBL Compact Pinspot with 20W RGBL LED - Image 3
ADJ Saber Spot RGBL Compact Pinspot with 20W RGBL LED - Image 4
ADJ Saber Spot RGBL Compact Pinspot with 20W RGBL LED - Image 5
Price:
RRP: £174.00 inc VAT
Code:
ADJ1226100501
Manufacturer Code:
1226100501
Brand:
ADJ

Quantity required:

Main Features

  • DMX and RDM Compliant
  • 6 White Color Temperature Settings: 2700K, 3200K, 4000K, 5600K, 6500K & 7000K
  • 63 Built-in Color Macros
  • 13 Built-in Color Changing Programs
  • 4-button Digital Display for easy navigation
  • Electronic Dimming 0 – 100%
Share:

Saber Spot RGBL Compact Pinspot with 20W RGBL LED

The ADJ Saber Spot RGBL is ADJ Lighting next generation LED pinspot with a 20-Watt RGBL LED source, ACL lens for a tight 5.7-degree beam, is DMX and RDM complaint and features built-in colour macros, colour changing programs and white colour temperature presets ranging from 2700K to 7000K.

Product Features

  • DMX and RDM Compliant
  • 6 White Color Temperature Settings: 2700K, 3200K, 4000K, 5600K, 6500K & 7000K
  • 63 Built-in Color Macros
  • 13 Built-in Color Changing Programs
  • 4-button Digital Display for easy navigation
  • Electronic Dimming 0 – 100%
  • Includes a scissor yoke to be hung, or set on the ground

Product Specifications

Optical

  • Light Source: 20-Watt, RGBL LED
  • LED Life Expectancy: 30,000 Hrs
  • Beam Angle: 5.7°
  • Includes 2 interchangeable frost filter lens (10-degree & 45-degree)
  • LED Refresh Rate: 3.6KHz

Connections

  • Power Input: Indoor power locking
  • Power Pass through: Indoor power locking
  • Control: 5-pin DMX In/Out pigtails
  • With Wired Digital Communication Network

Control

  • 12 DMX Channel Modes: 3 HSI/4 RGBL/4 HSI+/5 RGBL/6 sRGBLI/6 RGBL/7 RGBL/8 RGBL/8 16bit/10 HSI/12 sRGBLI/13 RGBL
  • RDM Compliant

Electrical

  • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
  • Power draw 120V 60Hz: 16.7W, 0.243 Amps
  • Power draw 230V 50Hz: 16.7W, 0.147 Amps
  • Power Output Current: 1.2A (14W)
  • Power Linking: 57pcs @120V, 95pcs @230V

Physical

  • Dimensions (LxWxH): 6.69” x 5.31” x 8.46" (170 x 135 x 215mm)
  • Weight: 3.2 lbs / 1.45 kg.
  • Black Housing

Certifications & Ratings

  • CE
  • cETLus Approved (Control # 4010765)
  • IP20

What's in the Box?

  • 1.83m Indoor locking power cord
  • 2 frost filter lens (10-degree & 45-degree)
  • Metal clip ring for frost filter lens
