SC615BS 15W Horn Speaker EN54 IP65 Rated

« return to previous page

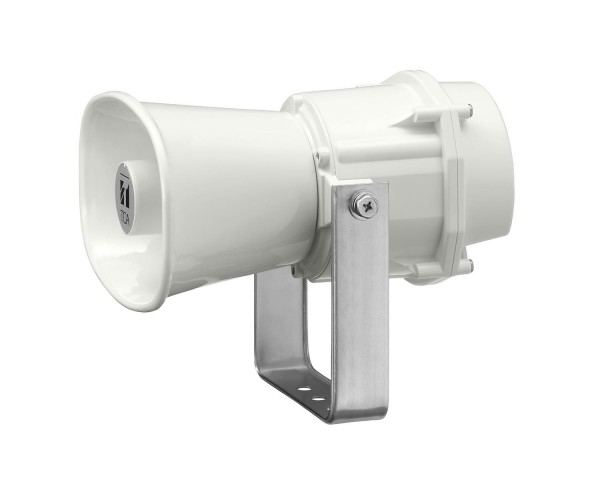

TOA SC615BS 15W Horn Speaker EN54 IP65 Rated - Main Image
Price:
RRP: £105.00 inc VAT
Code:
TOASC615BS
Manufacturer Code:
SC-615BS
Brand:
TOA

Quantity required:

Main Features

  • High speech clarity
  • High SPL
  • Wide frequency response
  • Easy impedance selection
  • Certified according to EN 54-24, ISO 7240-24
  • Compliant with BS-5839-8
Share:

SC615BS 15W Horn Speaker EN54

The SC-615BS is the voice alarm certification product. This speaker can be a clearer announcement for voice alarm. The SC-615BS Paging horn speaker features an aluminum horn flare and stainless steel bracket for all weather durability. The SC-615BS unique oval shape horn enhances excellent speech clarity.

Product Features

  • All weather durabilty
  • Very rugged and durable construction ensures long term reliable operation
  • High speech clarity
  • High SPL
  • Wide frequency response
  • Easy impedance selection
  • Certified according to EN 54-24, ISO 7240-24
  • Compliant with BS-5839-8

Product Specifications

  • Frequency response:  315 Hz - 12.5 kHz
  • Connection:  Screw terminal (steatite), can be bridge-connected
  • Sensitivity (1 W, 1 m): 109 dB (500 Hz - 2,5 kHz, peak level)
  • Maximum sound pressure level (1 m) (value):  111 dB
  • Rated input (High Impedance):  15W
  • Tappings:  100 V: 670 Ω (15 W) / 1 kΩ (10 W) / 2 kΩ (5 W) / 3.3 kΩ (3 W)
  • Operating temperature:  -20 °C to +55 °C (-4 °F to 131 °F)
  • Finish:
    • Aluminium, powder coating, off-white (RAL 9010 or equivalent), Reflector horn, trans case and terminal cover: ABS resin, off-white (RAL 9010 or equivalent)
    • Bracket, screws and bolts: Stainless steel
  • Dimensions:  172 x 195 x 229 mm (W x H x D)
  • Weight:  1.5 kg

What's in the Box?

  • 1x Terminal cover
