SCX1/O Studio Condenser Mic with Omnidirectional Capsule

« return to previous page

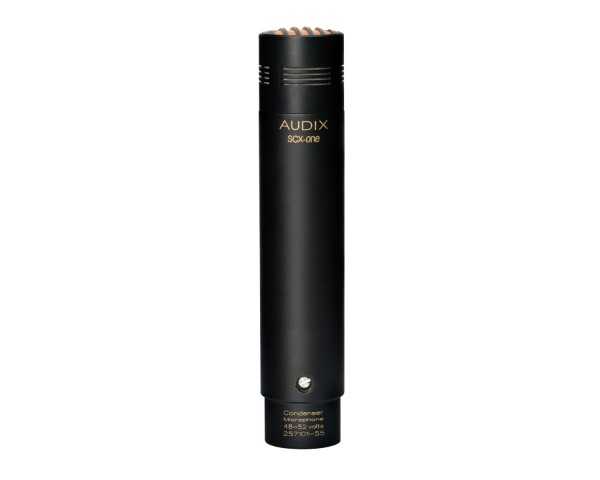

Audix SCX1/O Studio Condenser Mic with Omnidirectional Capsule - Main Image
RRP: £460.00 inc VAT
Manufacturer Code:

Quantity required:

Main Features

  • Studio Condenser Microphone with omnidirectional capsule
  • Known for its sensitivity, accuracy, low profile, and consistency
  • For miking overhead, orchestral sections and stringed instruments
  • Wide cardioid polar pattern
  • Interchangable capsules available
  • Frequency response from 40 Hz - 20 kHz

SCX1/O Studio Condenser Mic with Omnidirectional Capsule

The SCX1 is a professional studio cardioid condenser microphone designed for a wide variety of recording, broadcast and live sound applications. Known for its high sensitivity, pin-point accuracy, low profile and consistency, the SCX1 is also available with Hypercardioid (model SCX1HC) or omnidirectional (model SCX1O) capsules.

With a smooth uniform frequency response from 40 Hz - 20 kHz, the SCX1 is very consistent when responding to on and off-axis signals, and exhibits excellent phase coherence and minimal proximity effect. The SCX1 is characterized with a wide cardioid polar pattern; this, coupled with the high output and sensitivity of the microphone, makes the SCX1 an ideal choice for miking overheads, drums, instruments, room ambience, orchestral sections, stringed instruments, piano, vibes and sound effects. The SCX1HC condenser microphone is a number one choice for miking hi-hat both live and in the studio.

Other features include a 21 mm gold vapour capsule, miniaturized electronics, and an extremely small footprint. The SCX1 will handle sound pressure levels of 130 dB and will provide up to 20 dB of ambient noise rejection. In addition to acoustic instruments, the SCX1 is an excellent choice for group vocals, speech or Foley work. The SCX1HC has become a popular choice for interior dialogue boom pole miking. It has a precision machined brass body, interchangeable capsules, black multi-layer class ‘A' liquid finish and gold-plated XLR connector. The SCX1 studio condenser microphone is manufactured to exacting standards and tight tolerances.

Product Features

  • Professional, studio quality cardioid condenser
  • Extremely sensitive with pin-point accuracy
  • 21 mm gold vapour capsule with a modular design
  • Designed, machined, assembled & tested in the USA
  • 3-year warranty

Product Specifications


  • Transducer Type: Condenser
  • Frequency Response: 40 Hz - 20 kHz
  • Polar Pattern: Hypercardioid
  • Output Impedance: 200 ohms
  • Sensitivity: 26 (C) | 17 (HC) | 15 (O) mV / Pa @ 1k
  • Equivalent Noise Level: 14 dB (A-weighted)
  • Signal to Noise Ratio: 80 dB
  • Maximum SPL: ≥130 dB
  • Dynamic Range: 116 dB
  • Power Requirements: 48-52 V phantom
  • Connector: 3-pin XLRm
  • Polarity: Positive pressure on diaphragm produces a positive voltage on pin 2 relative to pin 3 of output XLR connector

Physical & Dimensions

  • Materials: Finish Machined Brass / Black Finish
  • Weight: 114 g / 4 oz
  • Length: 104 mm / 4.1 in

What's in the Box?

  • 1 x SCX1 Studio Condenser Microphone
  • 1 x CASEWOOD Foam Lined Wooden Case
  • 1 x DCLIP Microphone Clip
  • 1 x WS81C External Windscreen

Optional Accessories

  • APS2 - Two-channel 48 V phantom power supply. 110 V switchable to 240 V. Detachable power cord.
  • DFLEX - Dual pivot rim mounted clip with extra wide butterfly jaws.
  • STANDKD - Short pedestal stand with telescoping boom arm.
  • SMT25 - Low profile shock mount system with nylon cable and thumbscrew for positioning.
  • PD133 - Optional two-layer mesh pop diffuser for controlling acoustic plosives.
  • CBL20 - 20’ premium XLR-XLR balanced mic cable. Quad conductor, twisted pair with a braided shield for conductivity. 6 mm PVC jacketed.
  • P1 - Carrying pouch.
