SKM100 G4-GB Handheld Transmitter NO CAPSULE (MMD/MME/MMK) CH38

« return to previous page

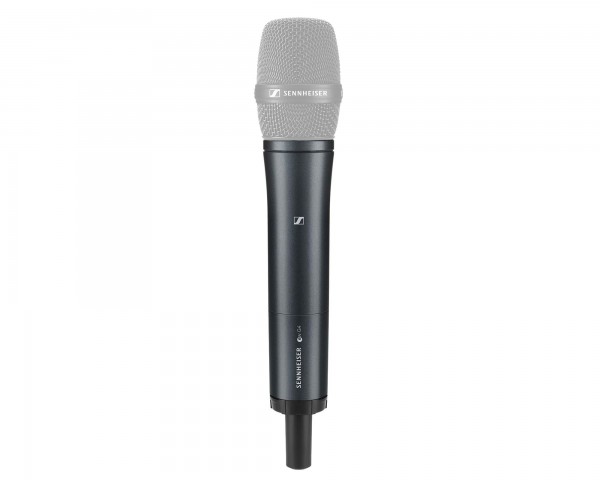

Sennheiser SKM100 G4-GB Handheld Transmitter NO CAPSULE (MMD/MME/MMK) CH38 - Main Image
Sennheiser SKM100 G4-GB Handheld Transmitter NO CAPSULE (MMD/MME/MMK) CH38 - Image 1
Sennheiser SKM100 G4-GB Handheld Transmitter NO CAPSULE (MMD/MME/MMK) CH38 - Image 2
Sennheiser SKM100 G4-GB Handheld Transmitter NO CAPSULE (MMD/MME/MMK) CH38 - Image 3
Price:
RRP: £310.80 inc VAT
Code:
SENSKM10038
Manufacturer Code:
509970 / 507662
Brand:
Sennheiser

Quantity required:

Main Features

  • SKM100 G4 Handheld Transmitter Excluding Mic Capsule
  • Requires variant of MMD, MME or MMK Mic Capsules
  • Fast frequency allocation for up to 12 receivers
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies
  • High RF output power
Share:

SKM100 G4-GB Handheld Transmitter EXCLUDING Mic Capsule CH38

Powerful handheld transmitter with a lightweight aluminum housing for evolution wireless G4 100 Series systems. Integrated mute switch version is available on SKM100 G4-S models.

*Microphone capsule not included with this item, please see other versions available on our trade website. To maximise your choice we make our best efforts to list handheld transmitters with and without their relevant capsules. If you can't find the item you're looking for, don't hesitate to call us on 01525 850085.*

Product Features

  • SKM100 G4 Handheld Transmitter Excl Mic Capsule
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 30 mW) depending on country regulations

Product Specifications

General

  • Modulation: Wideband FM
  • Frequency ranges
    • A1: 470 - 516 MHz
    • A: 516 - 558 MHz
    • AS: 520 - 558 MHz
    • G: 566 - 608 MHz
    • GB: 606 - 648 MHz
    • B: 626 - 668 MHz
    • C: 734 - 776 MHz
    • D: 780 - 822 MHz
    • E: 823 - 865 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937.5 MHz
    • 1G8: 1785 - 1800 MHz
  • Transmission frequencies
    • Max. 1680 receiving frequencies, adjustable in 25  kHz steps
    • 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    • 1 frequency bank with up to 12 programmable channels
  • Switching bandwidth: up to 42 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Frequency stability: ≤ ±15 ppm
  • RF output power at 50 Ω: Max. 30 mW
  • Pilot tone squelch: Can be switched off
  • Compander system: Sennheiser HDX
  • AF frequency response: 80 – 18,000 Hz
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • Max. input voltage: 3 Veff
  • Input impedance: 40 kΩ
  • Input capacitance: Switchable
  • Setting range for input sensitivity: 48 dB, adjustable in 6 dB steps
  • Temperature range -10 °C to +55 °C
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Nominal voltage: 3 V battery / 2.4 V rechargeable battery
  • Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA
  • Operating time: Typically 8 h

Physical & Dimensions

  • Ø: 50 x 265 mm
  • Weight: 450g

What's in the Box?

  • SKM 100 G4
  • MZQ 1 microphone clamp
  • 2 AA batteries
  • Quick guide
  • Safety guide
  • Manufacturer declaration sheet
