SpeechLine SL BOUNDARY SET DW-3 114-SDW Wireless Mic INC RMK

« return to previous page

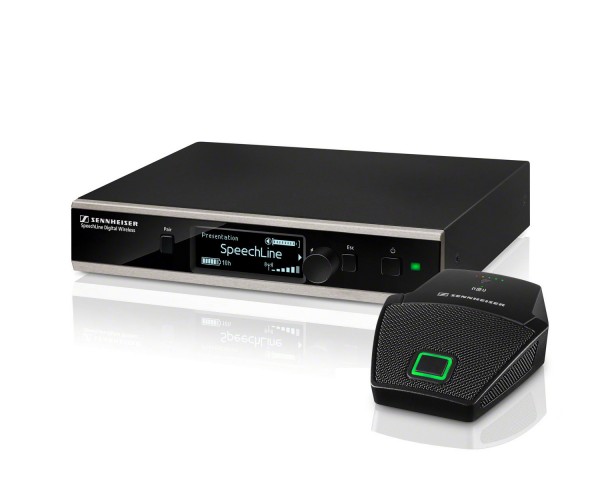

Sennheiser SpeechLine SL BOUNDARY SET DW-3 114-SDW Wireless Mic INC RMK - Main Image

Sennheiser SpeechLine SL BOUNDARY SET DW-3 114-SDW Wireless Mic INC RMK - Image 1

Sennheiser SpeechLine SL BOUNDARY SET DW-3 114-SDW Wireless Mic INC RMK - Image 2

Sennheiser SpeechLine SL BOUNDARY SET DW-3 114-SDW Wireless Mic INC RMK - Image 3

Sennheiser SpeechLine SL BOUNDARY SET DW-3 114-SDW Wireless Mic INC RMK - Image 4

Sennheiser SpeechLine SL BOUNDARY SET DW-3 114-SDW Wireless Mic INC RMK - Image 5

Price:: RRP: £1,530.00 inc VAT
Code:: SENSLB114SS
Manufacturer Code:: 506617
Brand:: Sennheiser

Main Features

SL Digital Wireless Mic with Receiver
Includes GA 4 rackmount set
Compatible with SpeechLine Digital Wireless family
Remote monitoring and control with the Sennheiser Control Cockpit
Compatible with SL Rack Receiver DW
Battery life indication via LEDs

Full Description

SL Boundary Set 114S Digital Wireless Mic with Receiver/GA4

The SL Boundary 114-S DW is part of the SpeechLine Digital Wireless product family and dedicated to speech. It is optimized for speech transmission in conference rooms. Being independent from any cables, the SL Boundary 114-S DW offers highly flexible application possibilities for users. Featuring inductive charging the SL Boundary 114-S DW can either be charged wirelessly or via USB. The wireless power transmitter CHG 2W for two mobile devices is available separately. The SL Boundary 114-S DW provides clear battery life indication via dedicated battery status LEDs. The SL Boundary 114-S DW is also compatible with the SL Rack Receiver DW and can be monitored and controlled remotely with the Sennheiser Control Cockpit.

Features

Product Features

SL Digital Wireless Mic with Receiver
Includes GA 4 rackmount set
Wireless inductive charging
Compatible with SpeechLine Digital Wireless family
Remote monitoring and control with the Sennheiser Control Cockpit
Battery life indication via LEDs

Technical Specs

Product Specifications

General

Frequency response: 40 to 20,000 Hz
THD, total harmonic distortion: typ. 0.1 %
Weight: ca. 208 g
Pick-up pattern: Cardioid
Microphone sensitivity: 10 mV / PA
Signal-to-noise ratio: > 90 dB(A)
RF output power: adaptiv, up to 250 mW (country-specific)
Operating time: Battery pack: typ. 13 h
Dynamic range: < 100 dB(A)
Frequency range
- EU: 1,880 to 1,900 MHz
- USA: 1,920 to 1,930 MHz
- Brazil: 1,910 to 1,920 MHz
- Taiwan: 1,880 to 1,895 MHz
- Japan: 1,893 to 1,906 MHz
Sampling rates: 24 bit/48 kHz

Receiver

Frequency range 1,880 to 1,900 MHz
- 1,920 to 1,930 MHz
- 1,893 to 1,906 MHz
- 1,880 to 1,895 MHz
- 1,910 to 1,920 MHz
Power supply EU
- UK
- AU
- US
- BR
- 12 V DC
Frequency response: 20 to 20,000 Hz
THD, total harmonic distortion: typ. 0.1 %
Weight: approx. 828 g
Power consumption: 350 mA
Signal-to-noise ratio: > 90 dB(A)
RF output power: adaptive, up to 250 mW (country-specific)
Antenna connector: 2 x reverse SMA
Audio output level (balanced): max. -18 dBu, typ. -24 dBu
Audio output level (unbalanced): max. +6 dBu
Dynamic range: > 120 dB(A)
RF sensitivity: < -90 dBm
Sampling rates: 24 bit/48 kHz
Connection: Audio Out: XLR 3M Audio Out: 2 x RCA Network: RJ 45
