SLP14/T 4" Low-Profile On-Wall Loudspeaker 45W 100V White

« return to previous page

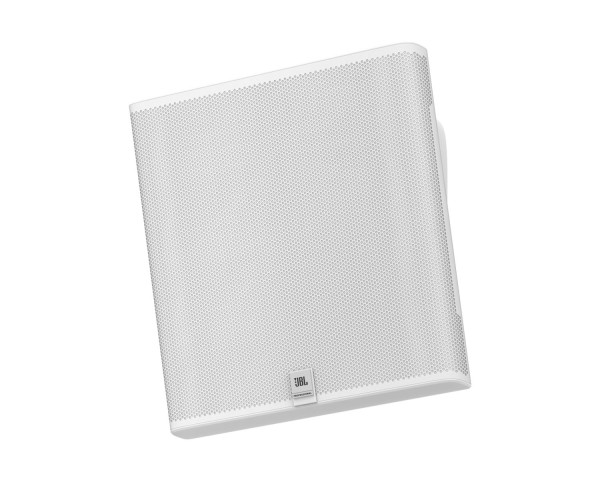

JBL SLP14/T 4 Low-Profile On-Wall Loudspeaker 45W 100V White - Main Image
Price:
RRP: £288.00 inc VAT
Code:
JBLSLP14TW
Manufacturer Code:
JBL2132
Brand:
JBL

Quantity required:

Main Features

  • Transducers: 100 mm (4 in) polypropylene cone woofer and 1” silk-dome tweeter
  • Power handling: 45W continuous pink noise, 60W continuous program
  • 15° down-tilted coverage allows flush-to-wall mounting
  • Included slide-in wall bracket makes installation a breeze
  • Sonically matched to JBL Control 14C/T ceiling speakers
  • Included rain cover protects terminal compartment in protected outdoor applications
Share:

SLP14/T 4" Low-Profile On-Wall Loudspeaker 45W 100V White

The SLP14/T two-way on-wall loudspeaker provides rich, detailed wide-range sound and broad, consistent coverage in a sleek, low-profile enclosure, thanks to a coaxial 4-inch driver complement that delivers the legendary sound that JBL is known for. The SLP14/T is an ideal foundation for a range of applications: It features a 25-watt multi-tap transformer for use in 70V/100V systems, and is switchable for direct 8-ohm operation; voicing matches well with JBL Control 14C/T ceiling speaker for consistent sound character, allowing mixing and matching within a single system. This robust speaker boasts 50-watt power handling, delivering clean, clear sound at any volume.

Installation is fast and easy using the included slide-in wall bracket; 15° down-tilted coverage allows mounting flush against a wall. An included rain cover protects the terminal compartment in outdoor applications. This elegantly finished speaker—winner of the RedDot international design award for industrial design excellence—complements any décor and is available in black or white finishes.

The stylish, great-sounding JBL SLP14/T is perfect for venues such as high-finish restaurants, hotels, resorts, retail stores, and any installation application calling for a discreet yet elegant look.

Product Features

  • Transducers: 100 mm (4 in) polypropylene cone woofer and 1” silk-dome tweeter
  • Power handling: 45W continuous pink noise, 60W continuous program
  • 15° down-tilted coverage allows flush-to-wall mounting
  • Included slide-in wall bracket makes installation a breeze
  • Sonically matched to JBL Control 14C/T ceiling speakers
  • Included rain cover protects terminal compartment in protected outdoor applications
  • Multi-tap transformer for use in 70V/100V systems
  • ADA-compliant at less than 4 inches deep
  • Finish: White

Product Specifications

  • Frequency Range (-10dB):  85 Hz – 20 kHz (on wall)
  • Frequency Response (+/-3 dB):  105 Hz – 17 kHz (on wall)
  • Power Rating:
    • 90 W Continuous Program (2 hrs)
    • 45 W (180 W Peak), Continuous Pink Noise (2 hrs)
    • 30 W (120 W Peak), Continuous Pink Noise (100 hrs)
  • Sensitivity:  86 dB (60 Hz – 20 kHz) half-space (mounted on a wall)
  • Maximum SPL:  108 dB peak (102 dB continuous, 2 hr) @ 1m
  • Nominal Coverage:  140° horizontal x 140° vertical
  • Directivity Factor (Q):  6.0
  • Directivity Index (DI):  7.7 dB
  • Nominal Impedance:  8Ω (at 8Ω tap setting)
  • Transformer Taps:
    • 70V: 25 W, 12.5 W, 6.3 W, 3.2W
    • 100V: 25 W, 12.5 W, 6.3 W
  • Driver:  100 mm (4 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kapton™ voice coil former, plus 1” silk-dome tweeter with neodymium magnet with aluminium former
  • Terminals:  4-pin Euroblock connector for bare wire
  • Enclosure Material:  Polycarbonate + ABS, UL94V-0 flammability rated
  • Colour:  White
  • Dimensions:  286mm W x 263mm H x 100mm D (11.3 x 10.4 x 3.9 in)
  • Net Weight:  2.8kg (6.2 lbs)
  • Included Accessories:  Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use

What's in the Box?

  • Wall-mount slide-on bracket (speaker and wall sides)
  • 4-pin Euroblock plug
  • Protective terminal cover for outdoor use
