SM11 Omnidirectional Dynamic Lavalier Microphone

« return to previous page

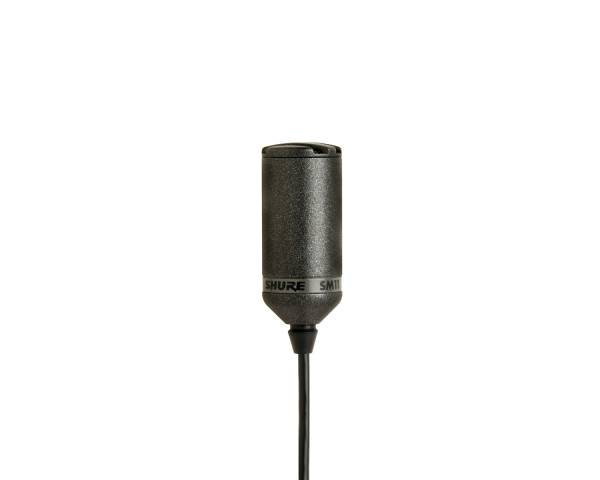

Shure SM11 Omnidirectional Dynamic Lavalier Microphone - Main Image
Price:
RRP: £133.20 inc VAT
Code:
SHUSM11CN
Manufacturer Code:
SM11-CN
Brand:
Shure

Quantity required:

Main Features

  • Acoustically matches most stand- or desk-mounted microphones
  • Small and lightweight for unobtrusive, virtually unseen operation
  • Smooth exterior and recessed grille screen minimize clothing noise
  • Rugged aluminium case construction
  • Extremely flexible long-life cable
  • Two mounting options -- tie clasp or tie tack
Share:

SM11 Omnidirectional Dynamic Lavalier Microphone

The Shure Model SM11 is a miniature dynamic lavalier microphone designed for use in television broadcasting (on camera), for sound reinforcement, in certain radio and motion picture applications, and similar uses where a small, professional-quality microphone is required. The SM11 has an omnidirectional pickup pattern, and its frequency response is optimized for lavalier use. The microphone is supplied with a tie clasp assembly, tie tack assembly, connector belt clip, and zippered carrying/storage bag. An optional kit for mounting the SM11 on various musical instruments is available as Shure Model RK279.

Product Features

  • Acoustically matches most stand- or desk-mounted microphones
  • Small and lightweight for unobtrusive, virtually unseen operation
  • Smooth exterior and recessed grille screen minimize clothing noise
  • Rugged aluminium case construction
  • Extremely flexible long-life cable
  • Two mounting options -- tie clasp or tie tack
  • Convenient, secure belt clip attaches connector to belt or clothing

Product Specifications

  • Type:  Dynamic (moving coil)
  • Frequency Response:  50 to 15,000 Hz
  • Polar Pattern:  Omnidirectional
  • Output Impedance:  150  Ω (200  Ω actual)
  • Sensitivity at 1kHz, open circuit voltage:  -64  dBV/Pa (0.60  mV)
  • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
  • Hum Pickup equivalent SPL in a 1millioersted field:  35  dB
  • Cable:  Non-detachable, 1.2 m (48 inch), two-conductor, shielded, plastic-covered
  • Connector:  Three-pin professional audio (XLR), male
  • Housing:  Aluminium with gray enamel finish
  • Weight:  7.9  g (0.28  oz.)

What's in the Box?

  • RK203TC Tie Clasp Assembly
  • 90A2384 Tie Tack Assembly
  • RK200BC Connector Belt Clip
  • 26A13 Carrying/Storage Bag
