SM7DB Cardioid Dynamic Podcast Vocal Microphone with Preamp

« return to previous page
Shure SM7DB Cardioid Dynamic Podcast Vocal Microphone with Preamp - Main Image
Shure SM7DB Cardioid Dynamic Podcast Vocal Microphone with Preamp - Image 1
Shure SM7DB Cardioid Dynamic Podcast Vocal Microphone with Preamp - Image 2
Shure SM7DB Cardioid Dynamic Podcast Vocal Microphone with Preamp - Image 3
Shure SM7DB Cardioid Dynamic Podcast Vocal Microphone with Preamp - Image 4
Shure SM7DB Cardioid Dynamic Podcast Vocal Microphone with Preamp - Image 5
Shure SM7DB Cardioid Dynamic Podcast Vocal Microphone with Preamp - Image 6
Price:
RRP: £494.40 inc VAT
Code:
SHUSM7DB
Manufacturer Code:
SM7DB
Brand:
Shure

Quantity required:

Main Features

  • Selectable preamp boost of either +18dB or +28dB of extra gain
  • Flat, wide-range frequency response
  • Preamp bypass switch deactivates the preamp to revert to original SM7B performance
  • Bass roll-off and mid-range emphasis (presence boost) EQ controls
  • Superior rejection of electromagnetic hum
  • Internal “air suspension” shock isolation virtually eliminates mechanical noise transmission
Share:

SM7DB Cardioid Dynamic Podcast Vocal Microphone with Preamp

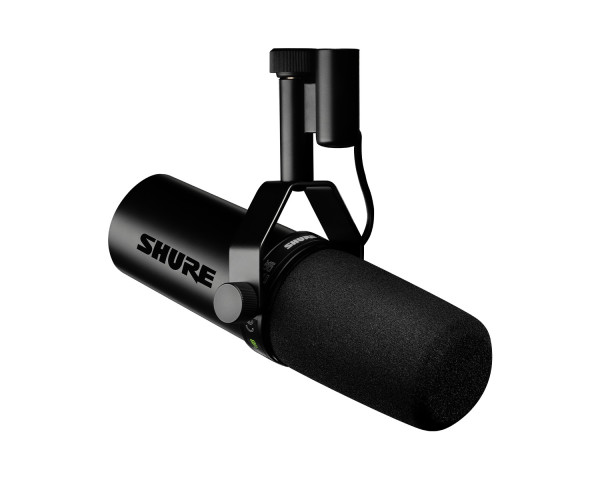

The Shure SM7dB dynamic microphone has a smooth, flat, wide-range frequency response appropriate for content creation, speech, music, and beyond. A built-in active preamplifier provides up to +28 dB of low-noise, flat, transparent gain while preserving frequency response for a clean, classic sound. The SM7dB's built-in preamp delivers the legendary sound of the SM7B, completely uncompromised and without the need for an in-line preamplifier. The SM7dB back panel switches allow customized frequency response and the ability to adjust or bypass the preamp.

Product Features

  • Selectable preamp boost of either +18dB or +28dB of extra gain
  • Flat, wide-range frequency response for exceptionally clean and natural reproduction of both music and speech
  • Preamp bypass switch deactivates the preamp to revert to original SM7B performance
  • Bass roll-off and mid-range emphasis (presence boost) EQ controls
  • Superior rejection of electromagnetic hum, optimized for shielding against broadband interference emitted by computer monitors
  • Internal “air suspension” shock isolation virtually eliminates mechanical noise transmission
  • Highly effective pop filter eliminates need for any add-on protection against explosive breath sounds, even for close-up vocals or narration
  • Yoke mounting with captive stand nut for easy mounting and dismounting provides precise control of microphone position
  • Classic cardioid polar pattern, uniform with frequency and symmetrical about axis, to provide maximum rejection and minimum colouration of off-axis sound
  • Rugged construction and excellent cartridge protection for outstanding reliability

Product Specifications

  • Type:  Dynamic (moving coil)
  • Frequency Response:  50 to 20,000 Hz
  • Polar Pattern:  Cardioid
  • Output Impedance:
    • Preamp engaged:  27 Ω
    • Bypass mode:  150 Ω
  • Recommended Load:  >1k Ω
  • Sensitivity:
    • Flat response bypass mode:  -59 dBV/Pa[1] (1.12 mV)
    • Flat response +18 preamp engaged:  -41 dBV/Pa[1] (8.91 mV)
    • Flat response +28 preamp engaged:  -31 dBV/Pa[1] (28.2 mV)
  • Hum Pickup (typical, at 60 Hz, equivalent SPL/mOe):  11 dB
  • Preamplifier Equivalent Input Noise (A-weighted, typical):  -130 dBV
  • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
  • Power Requirements (with preamp engaged):  48 V DC [2] phantom power (IEC-61938) 4.5 mA, maximum
  • Weight:  0.837 kg (1.875 lbs)
  • Housing:  Black enamel aluminium and steel case with black foam windscreen

What's in the Box?

  • Close-Talk Windscreen
  • 3/8” Thread Adapter
