SOLO MPA Single-Ch Rackmount Multi-Voice Tube PreAmplifier

« return to previous page

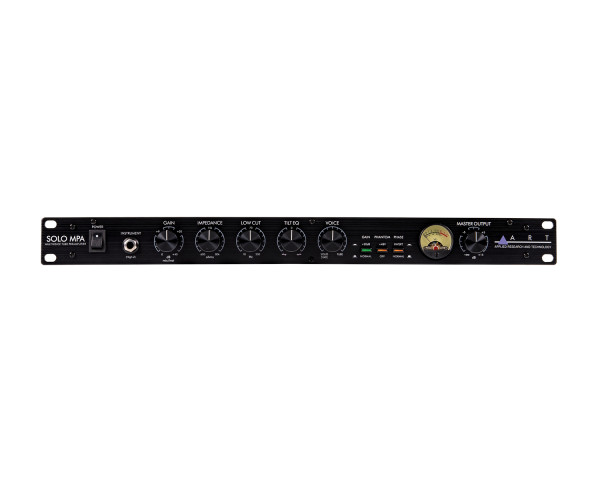

ART Pro Audio SOLO MPA Single-Ch Rackmount Multi-Voice Tube PreAmplifier - Main Image
ART Pro Audio SOLO MPA Single-Ch Rackmount Multi-Voice Tube PreAmplifier - Image 1
ART Pro Audio SOLO MPA Single-Ch Rackmount Multi-Voice Tube PreAmplifier - Image 2
ART Pro Audio SOLO MPA Single-Ch Rackmount Multi-Voice Tube PreAmplifier - Image 3
Price:
RRP: £320.99 inc VAT
Code:
ARTSOLOMPACE
Manufacturer Code:
ART-SOLOMPACE
Brand:
ART Pro Audio

Quantity required:

Main Features

  • Adjustable input impedance (600 to 80K ohms)
  • Flexible Tilt EQ
  • Hand selected 12AX7 Tube
  • Tunable Lowcut Filter
  • Variable Voice Tube/Solid State Control
  • Front accessible meter trim
Share:

SOLO MPA Single-Ch Rackmount Multi-Voice Tube PreAmplifier

The Solo MPA Multi-Voice Tube Preamplifier allows users to blend between a pristine low-noise/low-distortion solid-state transistor circuit and a warmer Class-A tube mic preamp.

The flexible EQ controls allow users to voice the Solo MPA to create their signature sound. Featuring 48V phantom power and a variable input impedance control, users can tailor the Solo MPA to suit their microphone of choice, be it a high-quality dynamic, a studio-grade condenser, or a low-level ribbon

The Solo Series of single-channel rackmount units have been developed for the recording enthusiast with a preference for simplicity.

Product Features

  • Adjustable input impedance (600 to 80K ohms)
  • Flexible Tilt EQ
  • Hand selected 12AX7 Tube
  • Tunable Lowcut Filter
  • Variable Voice Tube/Solid State Control
  • Front accessible meter trim
  • Discrete class A FET input microphone preamplifier
  • Low THD
  • Wide frequency response
  • Front mounted Instrument/DI Input
  • Very high input impedance
  • +4dBu/-10dBV output level selection

Product Specifications

  • Frequency Response:  15 Hz to 50 kHz (+0, -1dB)
  • Dynamic range:  >110dB (“A” weighted)
  • CMRR:  >90dB THD <0.005% (typical
  • Equivalent Input Noise:  -129dBu (XLR, “A” weighted)
  • Maximum Input Level:  +19dBu (XLR)
  • Maximum Instrument Input:  +17dBu
  • Input Impedance:  600-80K ohms adjustable (XLR), >800k ohms (Instrument), +27dBu (XLR)
  • Output Impedance:  < 47 ohms (XLR)
  • Maximum Gain:  75dB
  • Meter Calibration:  0VU = +4dBu output (+4dBu mode) 0VU = -10dBV output (-10dBV mode)
  • Low Cut Filter:  Single pole,10-200Hz adjustable
  • Tilt EQ:  +/- 12dB adjustable
  • Power Requirements:  100-120V 60 Hz / 220-240V 50Hz
  • Dimensions: (HxWxD) 1.75-inch x 19-inch x 6.0-inch (4.45 cm x 48.3 cm x 15.2 cm)
  • Weight:  5.6 lb / 2.5kg
