Source Four Junior Zoom Luminaire 25-50° Black

« return to previous page

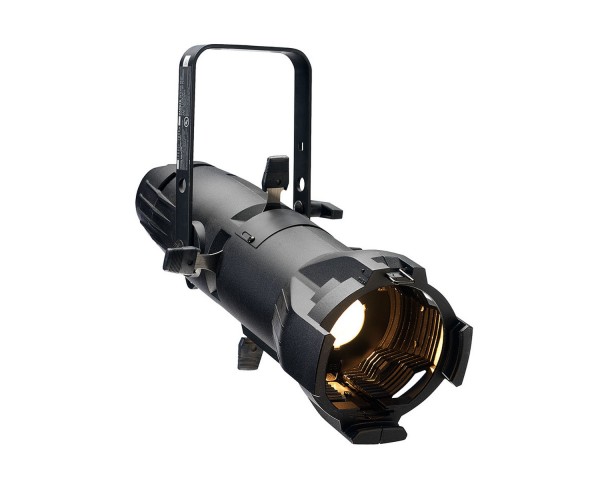

ETC Source Four Junior Zoom Luminaire 25-50° Black - Main Image
ETC Source Four Junior Zoom Luminaire 25-50° Black - Image 1
ETC Source Four Junior Zoom Luminaire 25-50° Black - Image 2
Price:
RRP: £672.00 inc VAT
Code:
ETCSFJZ2550B
Manufacturer Code:
7062A1209
Brand:
ETC

Quantity required:

Main Features

  • The power of Source Four in a compact and economical size
  • Uses the same technology that made the standard Source Four famous
  • Unsurpassed imaging and beam quality
  • Rated up to 575W
  • Perfect for but never limited to smaller theatre venues
  • Ideal wherever affordability, space saving and performance is needed
Share:

ETC Source Four Junior Zoom Luminaire - 25-50º

If you're looking for the field-angle versatility of a zoom ellipsoidal with the affordability and design of a smaller fixture, then you're looking for the Source Four jr Zoom. Great for application on the small stage or in clubs, retail events and industrials, the Source Four jr Zoom boasts rugged ETC fixture construction and all the celebrated precision optics of a Source Four.

Live stock levels for a trade accounts. Shipping cut-off at 4pm.

Product Features

  • 25º-50º Zoom
  • Rated up to 575W
  • Super-efficient HPL lamp
  • Faceted dichroic reflector removes 90% of IR heat from beam
  • Two-plane stainless-steel shutter blade assembly
  • Tool-free lamp adjustment
  • Rugged die-cast aluminum construction
  • Supports ETC Dimmer Doubling

Product Specifications

Physical

  • Rugged die cast aluminium construction
  • 20 gauge stainless steel shutters in a bi-plane assembly
  • High impact, thermally insulated knobs and shutter handles
  • Two accessory slots, and a top mounted, gel frame retainer
  • Steel yoke with two mounting positions
  • Positive locking, hand-operated yoke clutch
  • Slot for glass or stainless steel patterns
  • Slot with sliding cover for motorized pattern devices or optional iris
  • UL and cUL Listed

Electrical

  • 115-240V, 50/60Hz
  • High temperature 3-conductor 36” leads in a glass fibre outer sleeve
  • Supports ETC Dimmer Doubling™ technology

Lamp

  • 575W maximum
  • HPL – compact tungsten filament contained in a krypton filled quartz envelope (see table for suitable lamp types)
  • Patented filament geometry provides extremely efficient light collection and transmission
  • Integral die cast aluminium heat sink lamp base

Optical

  • Optimised optical system for efficient photometric performance
  • Two bi-convex lenses
  • Faceted borosilicate reflector with dichroic cold mirror coating removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light
  • Reflector secured with anti-vibration shock mounts
  • Tool free, positive locking X, Y and Z lamp centering adjustments, unaffected by relamping
  • Beam edge continually adjustable hard-to-soft
