Source Four LED Series 2 Lustr+ Black | LED Profile (Ellipsoidal) Fixtures

« return to previous page

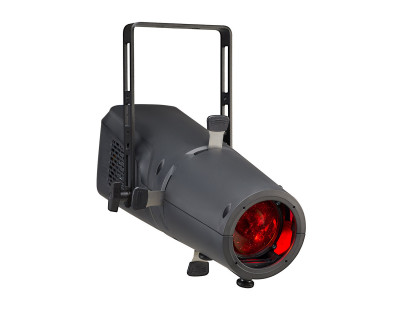

ETC Source Four LED S2 Lustr+ ERS Engine Body Only Black - Main Image

ETC Source Four LED S2 Lustr+ ERS Engine Body Only Black - Image 1

ETC Source Four LED S2 Lustr+ ERS Engine Body Only Black - Image 2

ETC Source Four LED S2 Lustr+ ERS Engine Body Only Black - Image 3

Price:: RRP: £2,544.00 inc VAT
Code:: ETCSFLEDLB
Manufacturer Code:: 7461A1250
Brand:: ETC

Main Features

60 Luxeon® Rebel LED emitters
Up to nine fixtures (15A max) may be linked via power thru connector (10 fixtures total per circuit) when used with R20 Relay Module or Unison Echo Relay Panel
Multiple control options, including RGB, strobe, and console-free Master/Slave mode
15-bit virtual dimming engine for smooth fades and minimal colour shift during dimming
Available in Black or White
Includes Engine Only

ETC Source Four LED Series 2 Lustr+ Black (Engine Only)

ETC Source Four LED Series 2 luminaires feature the same size, look, optics and beam angles as a conventional Source Four fixture, with the efficiency and energy savings of an LED. They also use the same barrel, so you can easily retrofit your inventory. For the highest-quality, controllable beam, Source Four LED Series 2 luminaires can accept any standard Source Four lens tubes, plus a special LED-only 50° lens tube. You can achieve the best results when using a Source Four EDLT (Enhanced Definition Lens Tube), which makes the beam crisper and cleaner. And you can turn your Source Four LED Series 2 luminaires into powerful cyc lights, by attaching a Source Four LED CYC™ adapter. Your backdrops have never been brighter or more beautiful.

Don't want to spend hours mixing colour? ETC has you covered. Their research team has developed colour algorithms that optimize the colour mix for each hue that your console dials up. Simply use the 'Hue, Saturation and Brightness' or 'Red Green Blue' controls and the luminaire does the rest. The Lustr array adjusts to the proper ratio of lime, red and the other five colours. You save on design time and get great results.

ETC's x7 Colour System™ combines a balanced recipe of up to seven colours to create evocative colour mixes. The Source Four LED Series 2 Lustr array takes the idea even further, with the addition of a lime-green LED emitter. Lime green increases the luminaire's lumen output in open white and lighter tints to make them brighter and livelier, better matching the colour of a conventional Source Four fixture. The lime also enriches colour-rendering by better marrying the red and blue ends of the colour spectrum, for truer-to-life light that fills in the gaps that ordinary LEDs leave behind.

Live stock levels for a trade accounts. Shipping cut-off at 4pm.

Product Features

60 Luxeon® Rebel LED emitters
Lustr fixtures hold a 54,000-hour L70 Rating
Daylight HD & Tungsten HD fixtures hold an L70 Rating of >60,000 hours
3 arrays: Lustr, Daylight HD and Tungsten HD
Includes slots for glass or stainless steel patterns and soft focus diffuser
Accessory slot for motorized pattern devices or optional iris
Power and DMX in/thru connections for easy setup
Up to nine fixtures (15A max) may be linked via power thru connector (10 fixtures total per circuit) when used with R20 Relay Module or Unison Echo Relay Panel.
DMX512 in/thru via five-pin XLR connectors
Multiple control options, including RGB, strobe, and console-free Master/Slave mode
15-bit virtual dimming engine for smooth fades and minimal colour shift during dimming
ETL Listed to UL1573; IP20 rated
Available in Black or White (Silver also available on request, please call our sales team)

Includes Engine Only

Product Specifications

Source

LED details: 60 Lumileds LUXEON® Rebel LED
Max lumens
- Series 2 Lustr: 8,667
- Series 2 Daylight HD: 13,060
- Series 2 Tungsten HD: 11,512
Lumens per watt
- Series 2 Lustr: 51.9
- Series 2 Daylight HD: 52.7
- Series 2 Tungsten HD: 55.3
L70 rating (hours to 70% output)
- Lustr: 54,000 hours
- Daylight/Tungsten HD: >60,000 hours

Colour

Colours used
- Series 2 Lustr: Red, Amber, Lime, green, Cyan, Blue, Indigo
- Series 2 Daylight HD: Red, Mint, Blue, Indigo
- Series 2 Tungsten HD: Red, Red-Orange, Mint, Blue, Indigo
Colour temperature range: Series 2 Lustr: 2,200–6,500 K*
Calibrated array: Yes
Red shift: Yes (can be disabled)

*Daylight HD is best suited for CT between 4000 and 6500 K. Tungsten HD is best suited for CT between 2700 and 4500 K.

Optical

Beam angle range: Swappable lens tubes between 5°–90°
Gate size: 80 mm
Aperture size: 6.25–14 in (depending on lens tube)
Pattern projection: Yes
Pattern size: A or B
Camera flicker control/Hz range: Yes: 900–25,000 Hz
Notes: Can be used with LED CYC and Fresnel adapters

Control

Input method: DMX512 via 5-pin XLR
Protocols: DMX512/RDM
RDM configuration: Yes
UI type: LCD
Local control: Yes
Onboard presets: Yes
Onboard sequences: Yes
Onboard effects: No
FixtureLink: Yes
Notes: 15-bit virtual dimming engine

Electrical

Voltage range: 100–240 VAC 50/60 Hz
Input method: Neutrik powerCON in and thru, requires power from a non-dimmable source
Inrush
- 50 A at 120 V (First half-cycle)
- 107 A at 240 V (First half-cycle)
Fixtures per circuit
- 9 Lustr or 7 Daylight HD/Tungsten HD (15 A via power thru connector)
- 10 Lustr or 8 Daylight HD/Tungsten HD (via R20 module or Echo Relay Panel)
Wattage typical
- Series 2 Lustr: 167
- Series 2 Daylight HD: 248
- Series 2 Tungsten HD: 208
Current draw
- Series 2 Lustr:
  - 1.44 A at 120 V
  - 0.78 A at 240 V
- Series 2 Daylight HD:
  - 1.75 A at 120 V
  - 0.93 A at 240 V
- Series 2 Tungsten HD:
  - 2.08 A at 120 V
  - 0.93 A at 240 V

Thermal

Ambient operating temp: 0°–40°C (32°–104°F)
Fan (controllable): Yes (yes)
Droop compensation: Yes
dB range: 22.5 dBA average at 1 m
BTUs/hour
- Series 2 Lustr: 569
- Series 2 Daylight HD: 846
- Series 2 Tungsten HD: 709

Physical

Materials: Die-cast, all-metal housing
Colour options: Black, white, silver, or custom colour
Mounting options: Yoke, cyc floor stand (sold separately)
IP rating: IP20
Weight
- With barrel: 8.3 kg (18.3 lb)
- Without barrel: 6.5 kg (14.3 lb)
Included accessories: Hanging yoke, 1.5 m power cable, soft focus diffuser in an A-size gobo holder, gel frame
Notes
- Positive locking double-clutch fixture body
- Slot for glass or stainless steel patterns and soft focus diffuser
- Wide accessory slot with sliding cover for motorized pattern device or iris

What's in the Box?

Source Four LED Series 2 Body
Hanging yoke
1.5 m power cable
Soft focus diffuser in an A-size gobo holder
Gel frame
