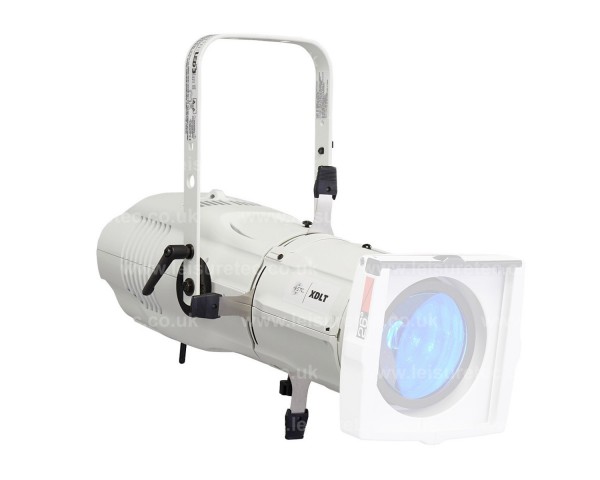

Source Four LED S3 Daylight HDR with XDLT Shutter Barrel White

Product Features

• Source Four LED Series 3 lighting fixture finished in white
• Daylight HDR: The tunable white-light Daylight HDR array includes red, mint, blue, indigo, cyan, and deep red LEDs.
• The built-in NFC hardware gives you the ability to configure your fixture with your mobile phone or tablet running the Set Light app
• DMX/RDM technology that enables scalability of wireless lighting data like never before
• Intuitive user interface designed to make your workflow as efficient as possible
• Addition of Deep Red to the colour mix
• Engine body and shutter barrel only

Product Specifications

Source

• LED details:  90 Lumileds LUXEON® C and CZ
• Max lumens
  • Lustr X8: 10,889
  • Daylight HDR: 14,214
• Lumens per watt
  • Lustr X8: 35
  • Daylight HDR: 42
• L70 rating (hours to 70% output):  >54,000

Colour

• Colours used
  • Lustr X8: Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo
  • Daylight HDR: Deep Red, Red, Mint, Cyan, Blue, Indigo
• Colour temperature range:  1900–10450 K
• Calibrated array:  Yes
• Red shift:  Yes (selectable)

Optical

• Beam angle range:  Swappable lens tubes between 5°–90°
• Gate size:  80 mm
• Aperture size:  6.25–17.5 in (depending on lens tube)
• Pattern projection:  Yes
• Pattern size:  A or B
• Camera flicker control/Hz range:  Yes: 5 kHz, 25 kHz
• Notes:  Can be used with LED CYC and Fresnel adapters

Control

• Input method:  5-Pin XLR, Multiverse wireless and NFC
• Protocols:  DMX-512, RDM, City Theatrical Multiverse, NFC
• Modes (footprint):  5 modes (1–12 channels)
• RDM configuration:  Yes
• UI type:  Full colour display
• Local control:  Yes
• Onboard presets:  Yes (12)
• Onboard sequences:  Yes
• Onboard effects:  No
• FixtureLink:  Yes
• Notes:  15-bit virtual dimming engine

Electrical

• Voltage range:  100–240 VAC 50/60 Hz
• Input method:  AC via Neutrik powerCON TRUE1 TOP
• Inrush
  • 40 A at 120 V (First half-cycle)
  • 80 A at 230 V (First half-cycle)
• Fixtures per circuit:  5 (link up to 4 via Power Thru connector)
• Note:  TRUE1 connector rated for 20 A (120 V / 60 Hz) and 16 A (240 V / 50 Hz)
• Wattage typical
  • Lustr X8
    • 307 W at120 V
    • 305 W at 230 V
  • Daylight HDR
    • 340 W at 120 V
    • 330 W at 230 V
• Current draw
  • Lustr X8:
    • 2.6 A at 120 V
    • 1.35 A at 230 V
  • Daylight HDR:
    • 2.85 A at 120 V
    • 1.5 A at 230 V

Thermal

• Ambient operating temp:  0°–40° C (32°–104° F)
• Fan (controllable):  Yes (yes)
• Droop compensation:  Yes
• dB range:  34 dBA average at 1 m
• BTUs/hour
  • Lustr X8: 1,047
  • Daylight HDR: 1,159

Physical

• Materials:  Die-cast, all metal housing
• Colour options:  Black, white, silver, or custom colour
• Mounting options:  Yoke, cyc floor stand (sold separately)
• IP rating:  IP20
• Weight
  • With barrel: 8.87 kg (19.55 lb)
  • Without barrel: 6.76 kg (14.90 lb)
• Included accessories:  Hanging yoke, 1.5 m power cable, A-size gobo holder
• Notes
  • Positive locking double-clutch fixture body
  • Slot for glass or stainless steel patterns and soft focus diffuser
  • Wide accessory slot with sliding cover for motorized pattern device or iris

What's in the Box?

• Source Four LED Series 3 Body
• Source Four LED Series 3 Barrel
• Hanging yoke
• 1.5 m power cable
• A-size gobo holder
