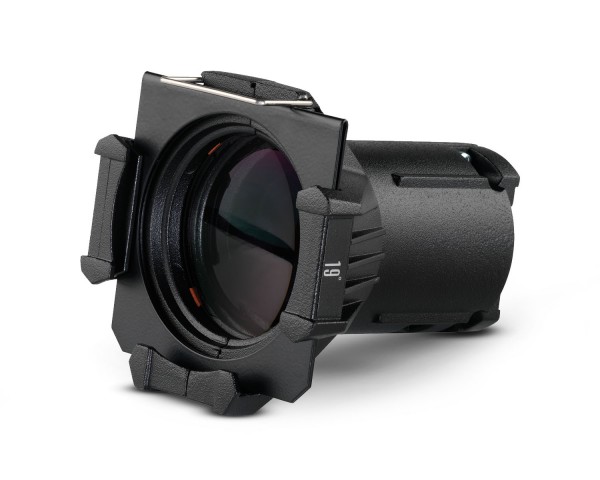

Source Four Mini Lens Tube 19° Black

« return to previous page
ETC Source Four Mini Lens Tube 19° Black - Main Image
Price:
RRP: £96.00 inc VAT
Code:
ETCSFMLTB19
Manufacturer Code:
7063A2002
Brand:
ETC

Quantity required:

Main Features

  • A 19 degrees lens tube for the Source Four CE Mini
  • Crystal clear image projection
  • 63.5mm diameter lens
  • Rugged, die-cast aluminium body
  • 19, 26, 36 and 50-degree options available (sold separately)
  • Black, grey and white versions available
Share:

Source Four CE Mini Lens Tube 19°

Good things come in small packages.  The Source Four Mini™ is everything you expect from the Source Four® brand - ease of use, superior optics, crystal-clear image projection and a bright, even field - but packaged in a tiny fixture that's just one-third the size of a traditional Source Four. A mere 23cm long, and available in both tungsten and LED, the Source Four Mini can go anywhere: museums, retail stores, restaurants, children's theatres, and other small scale installations where size matters.

The Source Four Mini is available in four field angles: 19°, 26°, 36° and 50°, with a 63.5mm diameter lens. It comes in a portable version , a canopy- ceiling-mount design with an integral transformer, or a 3-circuit track-mount design. There is also a low-voltage (12V) tungsten version. All Source Four Mini models include an E-sized gobo pattern holder and a gel media frame, with a range of additional accessories.

This 19° lens tube is compatible with both the tungsten and LED Source Four CE Mini fixtures. Please note that when purchasing a Source Four CE Mini fixture, the lens tubes are sold separately.

Product Features

  • A 19° lens tube for the Source Four CE Mini (both LED & tungsten)
  • Crystal clear image projection
  • 63.5mm diameter lens
  • Three versions of the Source Four CE Mini LED & Tungsten fixtures available
    • Portable
    • Canopy mount
    • Track mount
  • Crisp optics
  • A very compact format, with all the features from the prestigious Source Four range
  • Rugged, die-cast aluminium body
  • Black, grey and white versions available to match your Source Four CE Mini fixture

Product Specifications

19° Gallery

  • Field lumens:  374
  • Beam lumens:  311
  • Beam Angle:  17.4°
  • Field Angle:  20.1°
  • Candle LA:  5,752
  • Lumens per watt:  29.4

26° Gallery

  • Field lumens:  376
  • Beam lumens:  311
  • Beam Angle:  23.3°
  • Field Angle:  26.8°
  • Candle LA:  3,270
  • Lumens per watt:  29.6

36° Gallery

  • Field lumens:  391
  • Beam lumens:  320
  • Beam Angle:  33.1°
  • Field Angle:  37.0°
  • Candle LA:  1,730
  • Lumens per watt:  30.8

50° Gallery

  • Field lumens:  389
  • Beam lumens:  286
  • Beam Angle:  42.8°
  • Field Angle:  50.4°
  • Candle LA:  1,010
  • Lumens per watt:  30.7

For more in-depth information, please see datasheet attached.

What's in the Box?

  • Source Four CE Mini Lens Tube 19°

Other Source Four CE Mini Accessories

  • Source Four Mini Gobo Pattern Holder E-Size (Spare)
  • Source Four Mini Colour Frame (Spare) - Specify Colour
  • Source Four Mini Top Hat - Specify Colour
  • Source Four Mini Top Hat Short - Specify Colour
  • Source Four Mini Half Hat - Specify Colour
  • Source Four Mini Half Hat Short - Specify Colour
  • Source Four Mini Donut - Specify Colour
  • Source Four Mini Tungsten MR16 Replacement Lamp
