SRIEM G4-E Rack-Mount Transmitter for In-Ear System CH70

« return to previous page

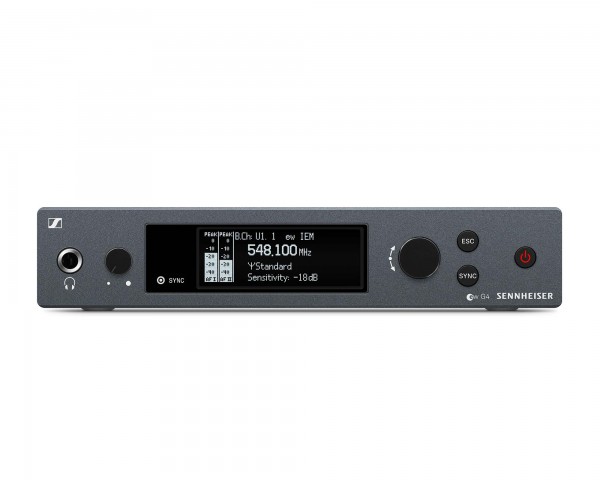

Sennheiser SRIEM G4-E Rack-Mount Transmitter for In-Ear System CH70 - Main Image
Sennheiser SRIEM G4-E Rack-Mount Transmitter for In-Ear System CH70 - Image 1
Sennheiser SRIEM G4-E Rack-Mount Transmitter for In-Ear System CH70 - Image 2
Sennheiser SRIEM G4-E Rack-Mount Transmitter for In-Ear System CH70 - Image 3
Price:
RRP: £634.80 inc VAT
Code:
SENSRIEM70
Manufacturer Code:
509921 / 507848
Brand:
Sennheiser

Quantity required:

Main Features

  • Half-rack stereo transmitter
  • Easy and flexible wireless synchronization
  • Compatible with Sennheiser WSM control software
  • Up to 16 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies
  • High RF output power
Share:

SR IEM G4-E Rack-Mount Transmitter for In-Ear System CH70

Half-rack stereo transmitter in a full-metal housing with OLED display for full control delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.

Product Features

  • Half-rack stereo transmitter in a full-metal housing with OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Compatible with Sennheiser WSM control software for flexible frequency allocation
  • Up to 16 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 30 mW) depending on country regulations

Product Specifications

  • Modulation: Wideband FM stereo (MPX pilot tone)
  • Frequency ranges
    • A1: 470 - 516 MHz
    • A: 516 - 558 MHz
    • AS: 520 - 558 MHz
    • G: 566 - 608 MHz
    • GB: 606 - 648 MHz
    • B: 626 - 668 MHz
    • C: 734 - 776 MHz
    • D: 780 - 822 MHz
    • E: 823 - 865 MHz
  • Receiving frequencies
    • Max. 1680 frequencies, adjustable in 25 kHz steps
    • 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation
    • 6 frequency banks with up to 16 programmable channels
  • Switching bandwidth: up to 42 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • MPX pilot tone  (frequency/deviation): 19 kHz/±5 kHz
  • Frequency stability: ±10 ppm
  • Antenna output: BNC socket, 50 Ω
  • RF output power at 50 Ω switchable:
    • Low: typ. 10 mW
    • Standard: typ. 30 mW
    • High: typ. 50 mW
  • Compander system: Sennheiser HDX
  • AF frequency response: 25 Hz to 15 kHz
  • AF input BAL AF IN L (I) + MONO/ BAL AF IN R (II): 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
  • Max. input level: +22 dBu
  • Total harmonic distortion (THD): <0.9 %
  • Signal-to-noise ratio (at nominal load and peak deviation): >90 dB
  • AF output LOOP OUT BAL L (I)/ LOOP OUT BAL R (II): ¼" (6.3 mm) stereo jack socket, balanced
  • Temperature range: -10 °C to +55 °C
  • Power supply: 12 V DC
  • Current consumption: max. 350 mA

Physical & Dimensions

  • Height: 43mm
  • Width: 212mm
  • Depth: 202mm
  • Weight: 980g

What's in the Box?

  • SR IEM G4 stereo transmitter
  • Rod antenna
  • Power supply
  • GA 3 rackmount set
  • Quick guide
  • Safety guide
  • Manufacturer declaration sheet
