Sub 18 High-Power 18" Cabinet Subwoofer 800W @ 8Ω Black

« return to previous page

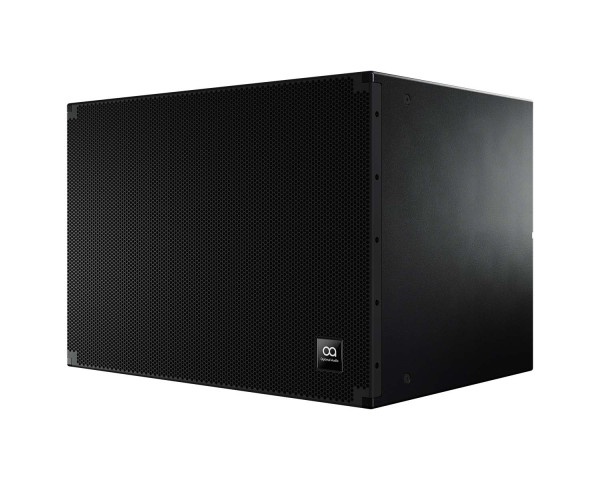

Optimal Audio Sub 18 High-Power 18 Cabinet Subwoofer 800W @ 8Ω Black - Main Image
Optimal Audio Sub 18 High-Power 18 Cabinet Subwoofer 800W @ 8Ω Black - Image 1
Optimal Audio Sub 18 High-Power 18 Cabinet Subwoofer 800W @ 8Ω Black - Image 2
Optimal Audio Sub 18 High-Power 18 Cabinet Subwoofer 800W @ 8Ω Black - Image 3
Price:
RRP: £1,200.00 inc VAT
Code:
OPASUB18
Manufacturer Code:
SUB18
Brand:
Optimal Audio

Quantity required:

Main Features

  • 18" LF Driver
  • Compact Size
  • Powerful Sub-bass Support Down to 42Hz (± 3dB)
  • High Power Handling
  • Plywood Construction
  • Euroblock Connector Type
Share:

Sub 18 High-Power 18" Cabinet Subwoofer 800W @ 8Ω Black

Sub 18 is a powerful, high-performance, passive, 18” subwoofer designed for applications that call for increased impact and low frequency performance across the Optimal Audio loudspeaker range.

The 18” (460mm) driver is loaded into a plywood bass-reflex cabinet that maximises performance, with a peak SPL of 136dB, while taking up minimal space. Sub 18 can be used on the ground or flown using integral M8 inserts.

An impact-resistant perforated steel grille protects the driver, and rubber feet on the base resist movement. The Sub 18 enclosure is constructed from plywood and finished in black textured paint.

When teamed with Zone and WebApp, system set up and end user control is simple and intuitive, and can be further supplemented by ZonePad wall controllers.

Product Features

  • 18" LF Driver
  • Compact Size
  • Powerful Sub-bass Support Down to 42Hz (± 3dB)
  • High Power Handling
  • Plywood Construction
  • Euroblock Connector Type

Product Specifications

  • Type:  Sub-bass loudspeaker
  • Frequency Response (with preset):
    • 42Hz-150Hz +/- 3dB
    • -10dB @ 36Hz
  • Drivers:  LF: 18” (460mm)
  • Rated Power:  800W (AES) 3200W (peak)
  • Nominal Impedance:  8Ω
  • Sensitivity (1W/1m):  101dB (Half Space)
  • Maximum SPL:  130dB (cont) 136dB (peak) (Half Space)
  • Enclosure:  Plywood
  • Finish:  Black Textured Paint
  • Protective Grille:  Perforated steel
  • Connectors:  Euroblock type
  • Pin Connections (Input):  4 pin Euroblock with link out
  • Fittings:  12 x M8, Inset bolts
  • Dimensions:  (W) 756mm x (H) 530mm x (D) 544mm
  • Weight:  47.0kg (103.6 lbs)
