SUB 702-AS MK3 12" Birch Ply Active Subwoofer with DSP 1400W Blk

« return to previous page

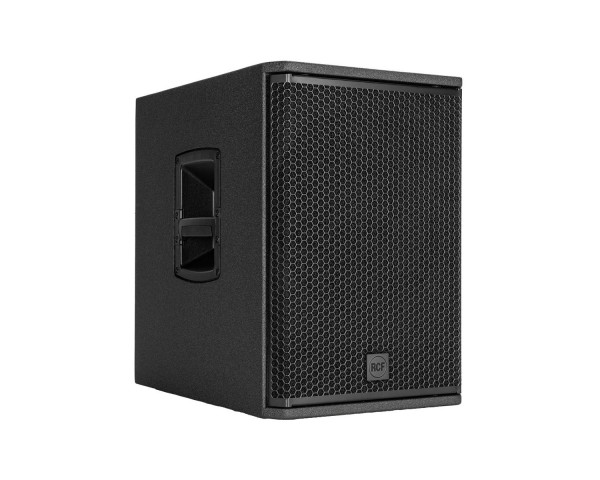

RCF SUB 702-AS MK3 12 Birch Ply Active Subwoofer with DSP 1400W Blk - Main Image
RCF SUB 702-AS MK3 12 Birch Ply Active Subwoofer with DSP 1400W Blk - Image 1
RCF SUB 702-AS MK3 12 Birch Ply Active Subwoofer with DSP 1400W Blk - Image 2
RCF SUB 702-AS MK3 12 Birch Ply Active Subwoofer with DSP 1400W Blk - Image 3
RCF SUB 702-AS MK3 12 Birch Ply Active Subwoofer with DSP 1400W Blk - Image 4
RCF SUB 702-AS MK3 12 Birch Ply Active Subwoofer with DSP 1400W Blk - Image 5
Price:
RRP: £796.80 inc VAT
Code:
RCFSUB702MK3
Manufacturer Code:
13000818
Brand:
RCF

Quantity required:

Main Features

  • 1400 Watt Class-D Amplifier
  • 12” Woofer, bass reflex housing
  • Stereo Crossover
  • Switchable Crossover Frequencies
  • Polarity-reverse switch
  • Electronic equalization, soft limiter and protection
Share:

SUB 702-AS MK3 12" Birch Ply Active Subwoofer with DSP 700W Black

The SUB 702-AS mk3 is a portable 12" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 129 dB with exceptional headroom. Designed as the ideal complement for 8" or 10" loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, delay, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 702-AS MK3 is perfect for small to mid-sized venues and portable applications.

Product Features

  • 1400 Watt Class-D Amplifier
  • 12” Woofer, bass reflex housing
  • Stereo Crossover
  • Switchable Crossover Frequencies
  • Polarity-reverse switch
  • Electronic equalization, soft limiter and protection
  • Stereo XLR input, Stereo XLR signal output
  • Bass Motion Control excursion management

Product Specifications

Acoustical specifications

  • Frequency Response:  40 Hz ÷ 120 Hz
  • Max SPL @ 1m:  129 dB

Transducers

  • Woofer:  12'', 2.5'' v.c

Input/Output section

  • Input signal:  bal/unbal
  • Input connectors:  XLR
  • Output connectors:  XLR
  • Input sensitivity:  -2 dBu/+4 dBu

Processor section

  • Hi-Pass Frequencies:  110 Hz
  • Low-Pass Frequencies:  80 Hz
  • Protections:  Thermal, RMS
  • Limiter:  Soft Limiter
  • Controls:  Volume, EQ, Phase, Xover

Power section

  • Total Power:  1400 W Peak, 700 W RMS
  • Low frequencies:  1400 W Peak, 700 W RMS
  • Cooling:  Convection
  • Connections:  VDE

Standard compliance

  • Safety agency:  CE compliant

Physical & Dimensions

  • Cabinet/Case Material:  Baltic birch plywood
  • Handles:  One each side
  • Pole mount/Cap:  Yes
  • Grille:  Steel with clothing
  • Colour:  Black
  • Height:  523 mm / 20.59 inches
  • Width:  360 mm / 14.17 inches
  • Depth:  515 mm / 20.28 inches
  • Weight:  21 kg / 46.3 lbs
