S 12 12" Ultra Compact Plywood Subwoofer 400W Black

« return to previous page

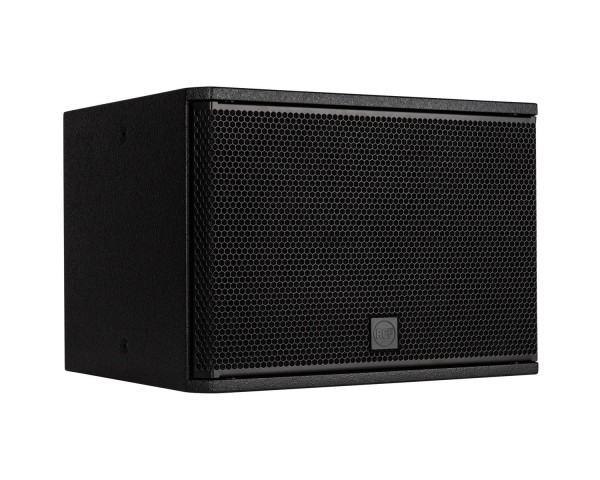

RCF S 12 12 Ultra Compact Plywood Subwoofer 400W Black - Main Image
RCF S 12 12 Ultra Compact Plywood Subwoofer 400W Black - Image 1
RCF S 12 12 Ultra Compact Plywood Subwoofer 400W Black - Image 2
RCF S 12 12 Ultra Compact Plywood Subwoofer 400W Black - Image 3
RCF S 12 12 Ultra Compact Plywood Subwoofer 400W Black - Image 4
RCF S 12 12 Ultra Compact Plywood Subwoofer 400W Black - Image 5
RCF S 12 12 Ultra Compact Plywood Subwoofer 400W Black - Image 6
RCF S 12 12 Ultra Compact Plywood Subwoofer 400W Black - Image 7
RCF S 12 12 Ultra Compact Plywood Subwoofer 400W Black - Image 8
Price:
RRP: £722.40 inc VAT
Code:
RCFSUBS12
Manufacturer Code:
13000618
Brand:
RCF

Quantity required:

Main Features

  • 400W AES power handling
  • 125 dB max SPL
  • 40 ÷ 200 Hz frequency range
  • 1 x 12" high-power woofer
  • High-quality plywood cabinet
  • Steel front grille with clothing
Share:

SUB S 12 Ultra Compact 12" 400W Subwoofer - Black

S 12 is a high-power, compact subwoofer system ideal for installations where the physically small size and impact of a 12'' driver are desired. Extending the frequency response below 40Hz, this highly efficient design is capable of providing output levels normally associated with considerably larger enclosures. A system suited to music playback in applications ranging from clubs, bars and cafes, right through to theatres and corporate applications. The low-frequency transducer is a 12” woofer with a 2.5” voice coil. Its design is the result of the latest refinements in compact subwoofer production, resulting in a fast and controlled reproduction of the bass frequency range. It is particularly well-suited for high- quality multimedia applications.

Product Features

  • 400W AES power handling
  • 125 dB max SPL
  • 40 ÷ 200 Hz frequency range
  • 1 x 12" high-power woofer
  • High-quality plywood cabinet
  • Steel front grille with clothing
  • M20 standard pole mount in the top section of the cabinet
  • 4 pole EUROBLOCK connector (audio input and parallel link output)

Product Specifications

Acoustical specifications

  • Frequency Response (-10dB): 40 Hz ÷ 200 Hz
  • Max SPL @ 1m: 125 dB
  • System Sensitivity: 93 dB

Power section

  • Nominal Impedance (ohm): 8 ohm
  • Power Handling: 400 W RMS
  • Peak Power Handling: 1600 W PEAK
  • Recommended Amplifier: 800 W

Transducers

  • Woofer: 12'', 2.5'' v.c
  • Nominal Impedance (ohm): 8 ohm
  • Input Power Rating: 400 W AES, 800 W PROGRAM POWER
  • Sensitivity: 93 dB, 1W @ 1m

Input/Output section

  • Input connectors: Euroblock
  • Output connectors: Euroblock

Standard compliance

  • CE marking: Yes

Physical specifications

  • Cabinet/Case Material: Plywood
  • Hardware: 12 x M10
  • Pole mount/Cap: Yes
  • Grille: Steel with clothing
  • Color: Black

Size

  • Height: 373 mm / 14.69 inches
  • Width: 530 mm / 20.87 inches
  • Depth: 425 mm / 16.73 inches
  • Weight: 24.6 kg / 54.23 lbs

Shipping information

  • Package Height: 423 mm / 16.65 inches
  • Package Width: 470 mm / 18.5 inches
  • Package Depth: 575 mm / 22.64 inches
  • Package Weight: 27.4 kg / 60.41 lbs
