SX118 1x18

Price:: RRP: £2,400.00 inc VAT
Code:: MAUSX118B
Manufacturer Code:: SX118
Brand:: Martin Audio

Main Features

Compact, direct radiating subwoofer
18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
High output capability
Tour-grade plywood enclosure with flying inserts
Suitable for: Touring sound reinforcement for small, medium-size venues and more

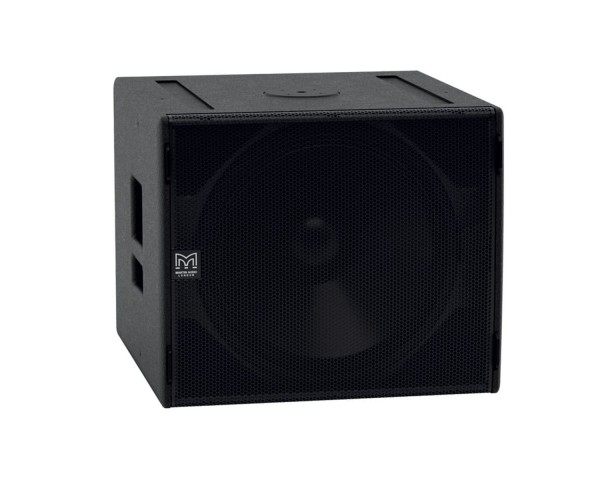

SX118 Compact, Direct Radiating Subwoofer

The SX118 is a compact, high performance subwoofer that extends the low frequency operating range of the system to 47Hz and provides exceptional low frequency output for such a compact enclosure.

SX118 features a long-excursion 18” (460mm)/4” (100 mm) voice coil driver with a water-resistant cone and triple roll surround in a compact reflex enclosure.

The design of the 18” driver maximises output while minimising power compression and distortion, and the four reflex ports have a large frontal area to reduce turbulent air noise at very high levels. The enclosure is constructed from multi-laminate birch ply, finished with a durable polyurea coating and equipped with a Zintec grille, twin grab handles, skids, flying inserts for installation and a threaded pole socket for pole-mounting point source loudspeakers or up to 4 WPM enclosures as a simple plug-and-play system.

White option also available on request, please call one of our sales team for details.

Product Features

Compact, direct radiating subwoofer
18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
High output capability
Tour-grade plywood enclosure with flying inserts

White option also available on request, please call one of our sales team for details.

Practical Applications

Touring sound reinforcement for small and medium-size venues
Fixed installations in concert halls, theatres, ballrooms and HoW
Sports stadium, arena installations & corporate AV events
Outdoor restaurant, bar and hotel entertainment areas
Concourses and Theme Parks

Product Specifications

TYPE: Compact, direct radiating subwoofer
FREQUENCY RESPONSE: 47Hz – 150Hz ±3dB, -10dB @ 41Hz
DRIVER: 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
RATED POWER: 1000W AES, 4000W peak
SENSITIVITY: 102dB
MAXIMUM SPL: 138dB peak
NOMINAL IMPEDANCE: 8Ω
DISPERSION (-6DB): Omnidirectional/or Cardioid (paired)
ENCLOSURE: Multi-laminate birch/poplar ply
FINISH: Durable Polyurea Coating
PROTECTIVE GRILLE: Black perforated Zintec
CONNECTORS: 2 x NL4 type
PIN CONNECTIONS (INPUT): LF: +1, -1 Link through: +2, -2
PINS CONNECTIONS (LINK): LF: +1, -1 Link through: +2, -2
FITTINGS:
- Two skids on base, with mating channels on top
- M20 top-mounted thread plate for pole mounting
- 16 x M10 mounting points
- 2 x bar handles, 1 on each side
- 4 x fittings for optional transit cover
- 16 x M8 inserts for optional castors
DIMENSIONS (INCL SKIDS):
- (W) 600mm x (H) 509mm x (D) 632mm
- (760mm including castors)
- (W) 24in x (H) 20.36in x (D) 25.26in
- (30.38in including castors)
WEIGHT: 43.5kg (96lbs) w/o castors 47kg (104lbs) with castors
