T001T M9000 Series Dual Line Output Expansion Module DSP

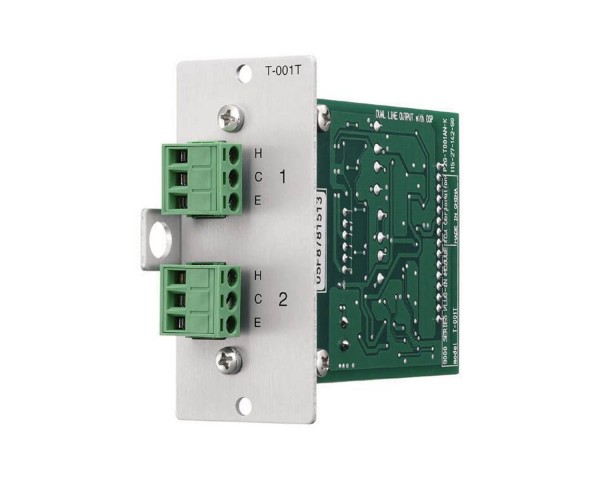

TOA T001T M9000 Series Dual Line Output Expansion Module DSP - Main Image

Price:: RRP: £142.80 inc VAT
Code:: TOAT001T
Manufacturer Code:: T-001T
Brand:: TOA

Main Features

2 balanced line outputs
Digital signal processing:
- 10-band parametric EQ
- Bass / treble, loudness
- High pass / low pass filters, compressor
Removable terminal block

Full Description

The T-001T is a plug-in module designed for use with the 9000 Series amplifiers and can provide two independent balanced outputs. It can drive load of 600 Ohm up to +16 dB. It can process effect for TONE/EQ/COMPRESSOR to two outputs independently.

Features

Product Features

2 balanced line outputs
Digital signal processing:
- 10-band parametric EQ
- Bass / treble, loudness
- High pass / low pass filters, compressor
Removable terminal block
Max. 3 output modules / chassis

Technical Specs

Product Specifications

Power source: 24 V DC
Frequency response: 20 Hz - 20 kHz (+1 / -3 dB)
Distortion: < 0.005 % (at 1 kHz, 20 Hz - 20 kHz BPF, 5 V output, 10 kOhm load)
Current consumption: 35,0 mA
S/N ratio: 73 dB (at 20 Hz - 20 kHz BPF)
Crosstalk: 87 dB
Equalizer / Filter
- Parametric Equalizer: 10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5
- Speaker Equalizer: 10 (setup software has 30 TOA speaker presets)
- High-pass Filter: -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
- Low-pass Filter: -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
- Compressor: Depth: 1 - 5
- Delay: 0 - 40 ms (1 ms step), maximum 40 ms (CH 1 + CH 2), mixer mode only
Dimensions (W x H x D): 35 x 78 x 91,5 mm
Dimensions (ø x D): x 91,5 mm
Finish: Aluminium, hairline,
Operating temperature: -10 °C to +40 °C
