T58600 Low Profile Clamp With Bolt/Nut/Washer WLL 500kg SILVER

« return to previous page

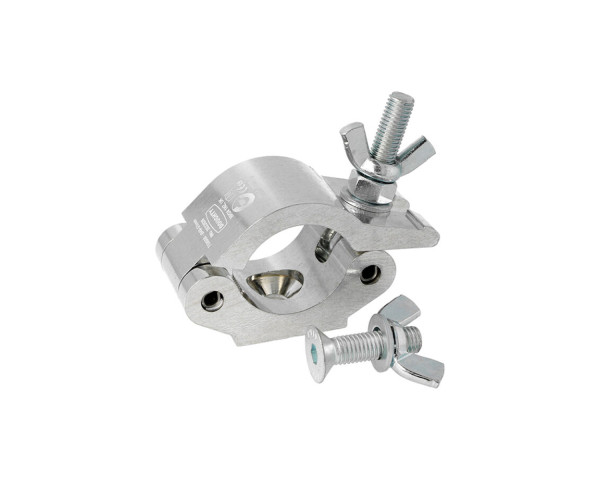

Doughty T58600 Low Profile Clamp With Bolt/Nut/Washer WLL 500kg SILVER - Main Image
Doughty T58600 Low Profile Clamp With Bolt/Nut/Washer WLL 500kg SILVER - Image 1
Doughty T58600 Low Profile Clamp With Bolt/Nut/Washer WLL 500kg SILVER - Image 2
Price:
RRP: £33.40 inc VAT
Code:
DOUT58600
Manufacturer Code:
T58600
Brand:
Doughty

Quantity required:

Main Features

  • WLL: 500Kg
  • Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
  • Clamp Width: 50mm (1.97")
  • Supplied with an M12 X 45 countersunk bolt and wing nut
  • Aluminium main body
  • Finish: Polished Silver
Share:

T58600 Low Profile Clamp With Bolt/Nut/Washer WLL 500kg SILVER

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes and is 50mm (1.97″) wide. It has a WLL of 500Kg and is supplied with an M12 X 45 countersunk bolt and wing nut.

Product Features

  • WLL: 500Kg
  • Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
  • Clamp Width: 50mm (1.97")
  • Supplied with an M12 X 45 countersunk bolt and wing nut
  • Aluminium main body
  • Finish: Polished Silver

Product Specifications

  • Tube Diameter:  Ø48 - 51mm (1.89” - 2.01”)
  • Materials:
    • Main Body - AW6082 T6 Aluminium
    • Roll Pins - Stainless Steel
    • Eyebolt Assy - Grade 8.8
  • Max Tightening Torque:  30Nm
  • Fixings:  M12x45 Countersunk Bolt & Wing Nut
  • WLL:  500Kg
  • Weight:  0.57Kg (1.26 lbs)
