TD30 Quality Multitap 100V Transformer 4-8Ω Out 30W

« return to previous page

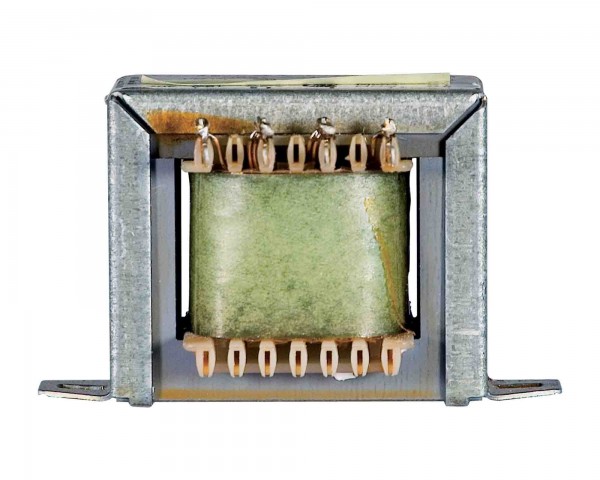

RCF TD30 Quality Multitap 100V Transformer 4-8Ω Out 30W - Main Image
Price:
RRP: £61.20 inc VAT
Code:
RCFTD30
Manufacturer Code:
13360046
Brand:
RCF

Quantity required:

Main Features

  • TD30 Quality Multitap 100V Transformer
  • High quality transformers suitable to connect loudspeakers with 4-8 ohm impedance
  • Thanks to material over-sizing and alternate layer windings, they offer high performance
  • It's possible to select different power values choosing different outputs
  • They are suitable to drive professional speakers through constant voltage power amplifiers
Share:

TD30 Quality Multitap 100V Transformer 4-8ohm Out 30W

These transformers make it possible to connect loudspeakers (4 - 8 Ω impedance) to constant voltage lines (70 - 100 V). It is possible to choose the power applied to loudspeakers, as these transformers have outputs with different transformation ratios.

Product Features

  • TD30 Quality Multitap 100V Transformer
  • High quality transformers suitable to connect loudspeakers with 4-8 ω impedance (td 105 excluded) to constant voltage lines (70-100v).
  • Thanks to material over-sizing and alternate layer windings, they offer high performance: dynamics and frequency response are particularly extended.
  • It's possible to select different power values choosing different outputs
  • They are suitable to drive professional speakers through constant voltage power amplifiers (td 105 excluded)

Product Specifications

General

  • FREQUENCY RESPONSE: 50 Hz - 18.000 Hz (- 3 db)
  • NOMINAL POWER: 30 W
  • INPUT VOLTAGE: 100 V - 70 V
  • OUTPUT POWER (4 OHM): 30 W - 15 W
  • OUTPUT POWER (8 OHM): 30 W - 15 W - 7,5 W

Physical & Dimensions

  • HEIGHT: 53mm
  • WIDTH: 87mm
  • DEPTH: 68mm
  • WEIGHT: 0.73kg
