TERRA-AMP Amplified IP Terminal 2x15W / 2xLine-Out

« return to previous page

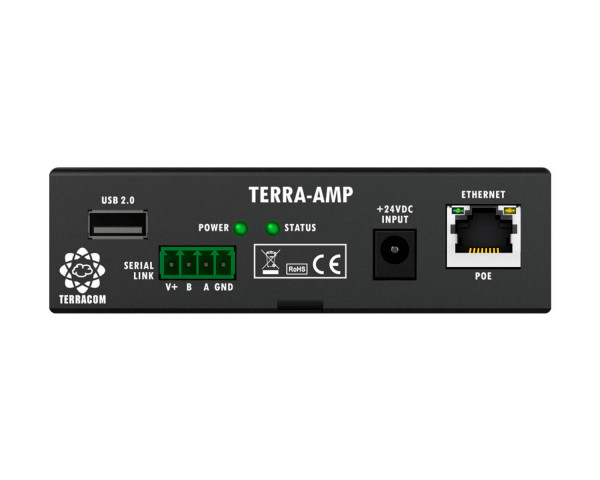

Terracom TERRA-AMP Amplified IP Terminal 2x15W / 2xLine-Out - Main Image
Terracom TERRA-AMP Amplified IP Terminal 2x15W / 2xLine-Out - Image 1
Terracom TERRA-AMP Amplified IP Terminal 2x15W / 2xLine-Out - Image 2
Price:
RRP: £955.36 inc VAT
Code:
TERRAAMP
Manufacturer Code:
TERRA-AMP
Brand:
Terracom

Quantity required:

Main Features

  • 1 mic/line balanced input
  • 2 balanced line outputs (1 stereo or 2 mono)
  • 2 x 15 W (8 Ω) balanced independent amplified outputs
  • 1 headphone output on mini-jack
  • 3 contact inputs
  • 2 relay outputs
Share:

TERRA-AMP Amplified IP Terminal 2x15W / 2xLine-Out

An amplified IP, POE audio encoder/decoder which can be used for voice, paging, intercom, music streaming, audio routing, pre-recorded and scheduled announcements, VoIP communication or as a SIP device. Utilise this module to input or output digitised audio from a network and provide an analogue output with I/O and/or RS232 control.

Simultaneous encoding/decoding of audio enables bi-directional and full duplex communication operating as an audio source for an IP network. Integrated shoutcast/icecast decoding, scheduler and internal storage are just some of the features of this IP module.

To configure, control and monitor the TERRA-AMP in real-time, this is simply achieved through your favourite web browser making the management of even the most complex environments a simple and straight forward process.

Product Features

  • 1 mic/line balanced input
  • 2 balanced line outputs (1 stereo or 2 mono)
  • 2 x 15 W (8 Ω) balanced independent amplified outputs
  • 1 headphone output on mini-jack
  • 3 contact inputs
  • 2 relay outputs
  • RS232 for third party control
  • USB interface for additional storage
  • Audio inputs/outputs: maximum level +5 dB, bandwidth 20 Hz ˜ 20 kHz
  • PoE or 24 VDC power supply (if PoE is not available)
  • Support G.711, G.722, G.726, G.727, G.729, MP3 audio codec and AAC+ decoding

Product Specifications

  • 1 mic/line balanced input
  • 2 balanced line outputs (1 stereo or 2 mono)
  • 2 x 15 W (8 Ω) balanced independent amplified outputs
  • 1 headphone output on mini-jack
  • 3 contact inputs
  • 2 relay outputs
  • Audio inputs/outputs: maximum level +5 dB, bandwidth 20 Hz ˜ 20 kHz
  • PoE or 24 VDC power supply (if PoE is not available)
  • Weight: 460 g
  • Dimensions (mm): Depth 104, Height 32, and Width 109.
