TesiraFORTE DAN VT4 Dante Fixed I/O DSP 4AEC-in / 8out / 2-VoIP

« return to previous page

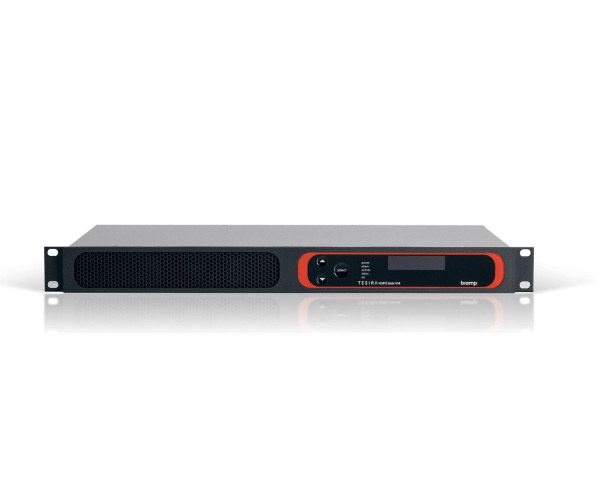

Biamp TesiraFORTE DAN VT4 Dante Fixed I/O DSP 4AEC-in / 8out / 2-VoIP - Main Image
Biamp TesiraFORTE DAN VT4 Dante Fixed I/O DSP 4AEC-in / 8out / 2-VoIP - Image 1
Biamp TesiraFORTE DAN VT4 Dante Fixed I/O DSP 4AEC-in / 8out / 2-VoIP - Image 2
Price:
RRP: £3,633.60 inc VAT
Code:
BIATFVT4DAN
Manufacturer Code:
913.0453.900
Brand:
Biamp

Quantity required:

Main Features

  • 32 x 32 channels of Dante
  • AES67-enabled Dante endpoint
  • 4 mic/line level inputs with AEC, 4 mic/line level outputs
  • Gigabit Ethernet port
  • RS-232 serial port
  • 4-pin GPIO
Share:

TesiraFORTÉ DAN VT4

The TesiraFORTÉ DAN VT4 is a digital audio server with 4 analogue inputs and 4 analogue outputs, and includes Acoustic Echo Cancellation (AEC) technology on all 4 inputs. It includes up to 8 channels of configurable USB audio, a 2-channel VoIP interface, a standard FXO telephone interface, and Dante digital audio networking.

Product Features

  • 32 x 32 channels of Dante
  • AES67-enabled Dante endpoint
  • 4 mic/line level inputs with AEC, 4 mic/line level outputs
  • Gigabit Ethernet port
  • RS-232 serial port
  • 4-pin GPIO
  • 2-line OLED display with capacitive-touch navigation
  • Rack mountable (1RU)
  • System configuration and control via Ethernet
  • Internal universal power supply
  • SIP VoIP interface via RJ-45 connector
  • Standard FXO telephone interface via RJ-11 connector
  • Signal processing via intuitive software allows configuration and control for signal routing, mixing, equalisation, filtering, and delay
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems’ five-year warranty

Product Specifications

General

  • Frequency Response:
    • 20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB
  • THD+N (22Hz to 22kHz):
    • 0dB gain, +4dBu input: < 0.006%
    • 54dB gain, -50dBu input: < 0.040%
  • EIN (no weighting, 22Hz to 22kHz): < -125dBu
    • Dynamic Range (in presence of signal)
  • 22Hz to 22kHz, 0dB gain: > 108dB
  • Input Impedance (balanced): 8kΩ
  • Output Impedance (balanced): 207Ω
  • Maximum Input: +24dBu
  • Maximum Output (selectable): +24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu
  • Input Gain Range (6dB steps): 0-66dB
  • Phantom Power: +48VDC (7mA/input)
  • Crosstalk, channel to channel, 1 kHz:
    • 0dB gain, +4dBu input: < -85dB
    • 54dB gain, -50dBu input: < -75dB
  • Sampling Rate: 48kHz
  • A/D - D/A Converters: 24-bit
  • Power Consumption:
    • 100-240VAC 50/60Hz: < 35W
  • USB:
    • Bit Depth: 16- or 24-bit
    • Number of Channels: up to 8
    • Sample Rate: 48kHz
  • Environment:
    • Ambient Operating
    • Temperature Range: 32-104° F (0–40° C)
    • Humidity: 0–98%, non-condensing
    • Altitude: 0-6,600 feet (0–2000 Meters) MSL

Overall Dimensions

  • Height: 1.75 inches (44 mm)
  • Width: 19.0 inches (483 mm)
  • Depth: 10.5 inches (267 mm)
  • Weight: 8 lbs (3.63 kg)

Compliance

  • FCC Part 15B (USA)
  • FCC Part 68 (USA)
  • Industry Canada CS-03 (Canada)
  • CE marked (Europe)
  • UL und C-UL listed (USA and Canada)
  • RCM (Australia)
  • RoHS Directive (Europe)
