TRK PRO1 USB Audio Interface 24-Bit 192KHz 2in / 2out

« return to previous page

Clearance

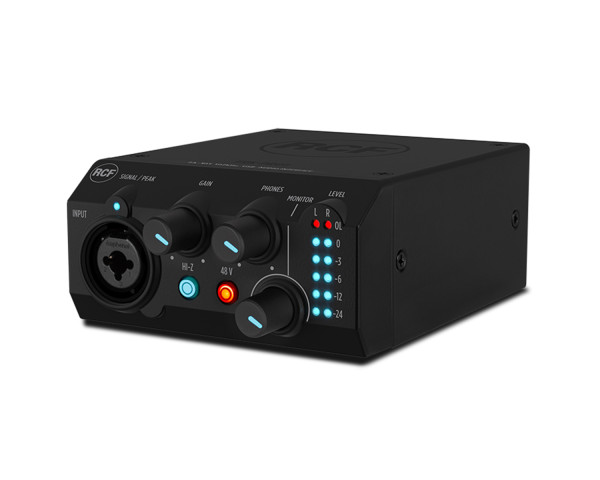

RCF TRK PRO1 USB Audio Interface 24-Bit 192KHz 2in / 2out - Main Image

RCF TRK PRO1 USB Audio Interface 24-Bit 192KHz 2in / 2out - Image 1

RCF TRK PRO1 USB Audio Interface 24-Bit 192KHz 2in / 2out - Image 2

RCF TRK PRO1 USB Audio Interface 24-Bit 192KHz 2in / 2out - Image 3

RCF TRK PRO1 USB Audio Interface 24-Bit 192KHz 2in / 2out - Image 4

RCF TRK PRO1 USB Audio Interface 24-Bit 192KHz 2in / 2out - Image 5

RCF TRK PRO1 USB Audio Interface 24-Bit 192KHz 2in / 2out - Image 6

Price:: RRP: £117.60 inc VAT
Code:: RCFTRKPRO1
Manufacturer Code:: 17100013
Brand:: RCF

Main Features

1 Mic and Instrument/line Combo input
Up to 24-Bit/192kHz
High-quality preamp
Perfect for RDNet Measures
Robust Metal Case
Balanced Output

RCF TRK PRO1 hardware interface packs a robust and well-thought USB 2.0 studio-in-a-box with all the connectivity required for microphones, musical instruments, or line-level signals to a computer running macOS or Windows. The internal linear preamp circuit allows the connection of 48V phantom-powered microphones and Hi-Z level instruments. The input signal can be routed to DAW (Digital Audio Workstation) at up to 24-bit, 192 kHz resolution. The interface can be connected to an amplifier and speakers, powered monitors, headphones, an analog mixer, or any other analog audio device.

Product Features

1 In 2 Out USB 2.0 Bus-Powered Audio Interface
Up to 24-Bit/192kHz
1 Mic and Instrument/line Combo input
High-quality preamp
Balanced Output
Independent headphone volume control
Robust Metal Case
Perfect for RDNet Measures
48V Phantom Power Supply
Independent Gain Control with Signal-Peak LED

Product Specifications

General

MIC INPUT (Balanced):
- Freq. Response: 20Hz-20kHz, +/-0.1 dB
- THD+N: <0.0011%, -1dBFS, 20Hz-20kHz
- Noise EIN: < -120dB
- Dynamic Range: 107dB (A-weighted)
- Input Impedance: 3.5KOhm
- Gain Range: -9 dB ~ +47 dB
- Maximum Input Level: +9 dBu
LINE INPUT (Balanced):
- Freq. Response: 20Hz-20kHz, +/-0.1dB
- THD+N <0.0011%, -1dBFS, 20Hz ~ 20kHz
- Dynamic Range 107 dB (A-weighted)
- Input Impedance: 15 kOhm
- Gain Range: -20 dB ~ +36 dB
- Maximum Input Level +20 dB
INSTRUMENT INPUT (Unbalanced):
- Freq. Response: 20Hz-20kHz, +/-0.1 dB
- THD+N: 107dB (A-weighted)
- Input Impedance: 1MOhm
- Gain Range: -10 dB ~ +46 dB
- Maximum Input Level: +10 dBu
ANALOG OUTPUT (Balanced):
- Maximum Output Level 0dBFS=12dBu
- Freq.Response: 20 Hz~20 kHz, +/-0.2
- THD+N <0.0012%, -1dBFS, 20 Hz-20 kHz
- Dynamic range: 107 dB (A-weighted)
HEADPHONES OUTPUT (Unbalanced):
- Output Impedance: <10 Ohm
- Max Output Level: 500 Ohm - 114 mW
SUPPORTED SAMPLE RATES:
- 44.1 kHz, 48 kHz,
- 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
SUPPORTED BIT DEPTH: 16 Bit, 24 Bit
Cabinet/Case Material: Steel
Colour: Black - RAL 9005

Physical

Height: 46 mm / 1.81 inches
Width: 91.4 mm / 3.6 inches
Depth: 125.8 mm / 4.95 inches
Weight: 0.5 kg / 1.1 lbs
Package Height: 80 mm / 3.15 inches
Package Width: 162 mm / 6.38 inches
Package Depth: 170 mm / 6.69 inches
Package Weight: 0.6 kg / 1.32 lbs

Product Downloads

TRK PRO1 Datasheet
