U853RU UniLine Hanging Microphone (90° Pickup) Black

« return to previous page

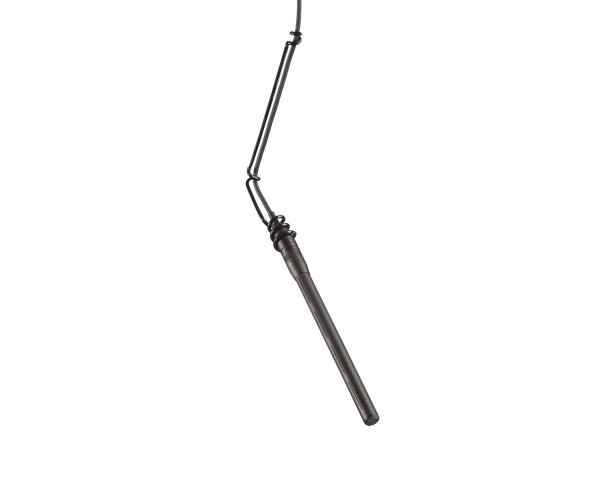

Audio Technica U853RU UniLine Hanging Microphone (90° Pickup) Black - Main Image
Price:
RRP: £299.00 inc VAT
Code:
AUDU853RU
Manufacturer Code:
U853RU
Brand:
Audio Technica

Quantity required:

Main Features

  • Designed for suspension over choirs, instrumental groups and theater stages
  • UniLine polar pattern provides narrow 90 degree acceptance angle
  • Superior off axis rejection for maximum gain before feedback
  • UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference
  • UniSteep filter provides a steep low frequency attenuation
  • Low profile design with low reflectance finish for minimum visibility
Share:

U853RU UniLine Hanging Mic (90deg Pickup) Black Phantom Only

Featuring Audio-Technica's UniLine® line cardioid element the U853RU UniLine condenser hanging microphone is equipped with UniGuard® innovations that offer unsurpassed immunity from radio frequency interference. The phantom powered microphone accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine® line cardioid polar patterns.  Its 80 Hz low-cut UniSteep® filter reduces pickup of low-frequency ambient noise.

Product Features

  • Designed for suspension over choirs, instrumental groups and theater stages
  • UniLine polar pattern provides narrow 90° acceptance angle
  • Superior off axis rejection for maximum gain before feedback
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • UniSteep® filter provides a steep low frequency attenuation to improve sound pickup without affecting voice quality
  • Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
  • Low profile design with low reflectance finish for minimum visibility

Product Specifications

General

  • Element: Fixed charge back plate, permanently polarized condenser
  • Polar Pattern: Line Cardioid
  • Frequency Response: 30-20,000 Hz
  • Low Frequency Roll Off: 80 Hz, 18 dB/octave
  • Open Circuit Sensitivity: 35 dB (17.7 mV) re 1V at 1 Pa
  • Impedance: 250 ohms
  • Maximum Input Sound Level: 135 dB SPL, 1 kHz at 1% T.H.D.
  • Dynamic Range: 115 dB, 1 kHz at Max SPL
  • Signal to Noise Ratio: 74 dB, 1 kHz at 1 Pa
  • Phantom Power Requirements: 11-52V DC, 2 mA typical
  • Switch: Flat, roll-off
  • Cable: 25.0' (7.6 m) long (permanently attached to microphone), 0.13" (3.2 mm) diameter, 2-conductor, shielded cable with TA3F-type connector

Physical & Dimensions

  • Microphone:
    • Length: 156mm
    • Diameter: 12.2mm
    • Weight: 30g
  • Power Module:
    • Length: 92.9mm
    • Diameter: 18.9mm
    • Weight: 81g

What's in the Box?

  • AT8154 two-stage foam windscreen
  • AT8451 steel hanger
  • AT8538 power module
  • AT8438 5/8"-27 stand adapter
