U859QL 480mm Cardioid Condenser Gooseneck Microphone XLR3

« return to previous page

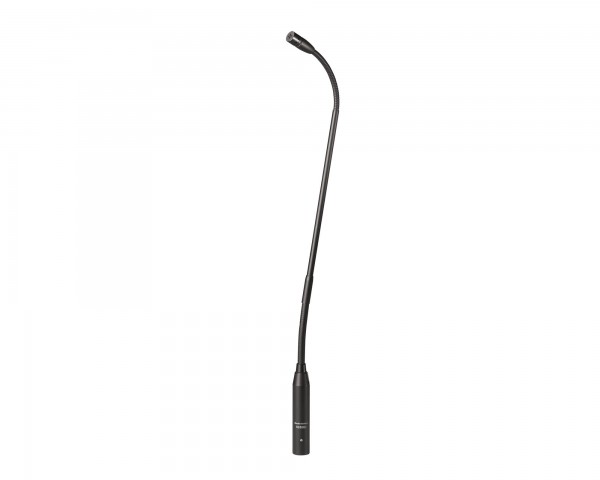

Audio Technica U859QL 480mm Cardioid Condenser Gooseneck Microphone XLR3 - Main Image
Price:
RRP: £189.00 inc VAT
Code:
AUDU859QL
Manufacturer Code:
U859QL
Brand:
Audio Technica

Quantity required:

Main Features

  • Designed for high-quality sound reinforcement, professional recording and broadcasting
  • Superior off-axis rejection for maximum gain before feedback
  • Easy-to-adjust, rugged, small-diameter, alternating gooseneck with virtually no 'memory' permits quick positioning into desired shape
  • Self-contained electronics eliminate need for external power module
  • Quick-mount design with 3-pin XLRM-type connector insert at base plugs into any standard XLRF-type surface or cable connector
Share:

U859QL Cardioid Condenser Gooseneck (Exc UniGuard) 480mm XLR

Designed to plug directly into a panel or desk mounted XLRF connector. The U859QL features an ultra flexible small diameter gooseneck and a fixed cardioid element. Equipped with self contained electronics, the phantom powered microphone also offers an 80 Hz low cut UniSteep® filter that reduces pickup of low frequency ambient noise. The microphone is 480.0 mm long.

Product Features

  • Designed for high-quality sound reinforcement, professional recording and broadcasting
  • Superior off-axis rejection for maximum gain before feedback
  • Easy-to-adjust, rugged, small-diameter, alternating gooseneck with virtually no “memory” permits quick positioning into desired shape
  • UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Self-contained electronics eliminate need for external power module
  • Quick-mount design with 3-pin XLRM-type connector insert at base plugs into any standard XLRF-type surface or cable connector

Product Specifications

General

  • ELEMENT: Fixed-charge back plate permanently polarized condenser
  • POLAR PATTERN: Cardioid
  • FREQUENCY RESPONSE: 100-16,000 Hz
  • LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
  • OPEN CIRCUIT SENSITIVITY: –43 dB (7.0 mV) re 1V at 1 Pa
  • IMPEDANCE: 250 ohms
  • MAXIMUM INPUT SOUND LEVEL: 140 dB SPL, 1 kHz at 1% T.H.D.
  • DYNAMIC RANGE (typical): 111 dB, 1 kHz at Max SPL
  • SIGNAL-TO-NOISE RATIO: 65 dB, 1 kHz at 1 Pa
  • PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
  • SWITCH: Flat, roll-off
  • OUTPUT CONNECTOR: Integral 3-pin XLRM-type

Physical & Dimensions

  • Length: 480mm
  • Head Diameter: 12.3mm
  • Base diameter: 18.9mm
  • Weight: 152g

What's in the Box?

  • AT8153 two-stage foam windscreen
