Main Features
530-790 MHz
Up to 100 degrees coverage pattern (3dB beam width, region dependent)
Four-position RF gain switch with pad/boost (-20, -10, 0, +10 dB)
Attached BNC cable for surface or through-wall cable routing options

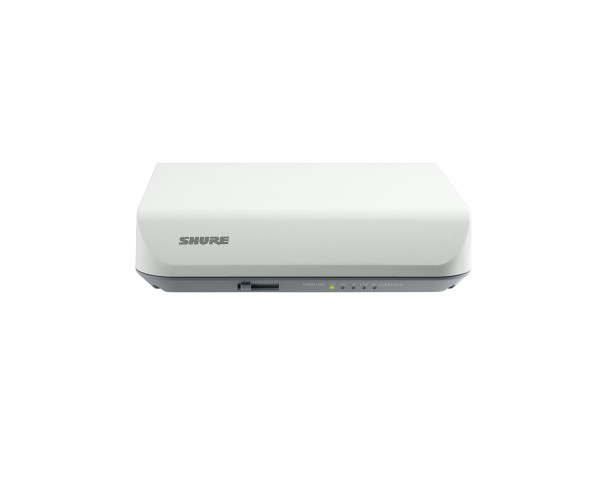

The UA864 antenna provides wideband RF coverage in a low-profile enclosure that easily mounts on a wall or ceiling. The neutral white housing allows the antenna to blend into corporate or classroom settings, and is paintable to match interior colour schemes. The 4-position selectable gain switch provides attenuation and boost settings to optimise the antenna performance for varying transmitter distances and cable run lengths.
Product Features
530-790 MHz
Up to 100 degrees coverage pattern (3dB beam width, region dependent)
Four-position RF gain switch with pad/boost (-20, -10, 0, +10 dB)
Attached BNC cable for surface or through-wall cable routing options
Low-profile design
Metal surface mounting capability
Neutral white, paintable housing
Product Specifications
Connector Type: BNC, Female
Impedance: 50 Ω
Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mA
RF Frequency Range: 530–790 MHz
Reception Pattern 3 dB Beam Width at centre frequency: 95 degrees
Third-order Overload Intercept Point (OIP3): >30 dBm
Antenna Gain On Axis, 0 dB Gain Setting at centre frequency: 3.0 dBi
Signal Gain:
±1 dB, Switchable
+10 dB0 dB−10 dB−20 dB
RF Overload LED Threshold: −15 dBm
Dimensions: 176 x 176 x 51 mm (H x W x D
Weight: 487 g (17.2 oz.)
Operating Temperature Range: −7°C (20°F) to 49°C (120°F)
Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
