ULXD8 Wireless Gooseneck Base Transmitter White K51 CH38

« return to previous page

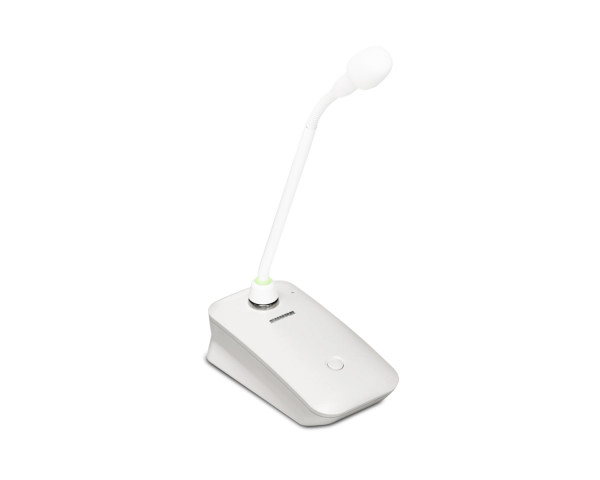

Shure ULXD8 Wireless Gooseneck Base Transmitter White K51 CH38 - Main Image
Shure ULXD8 Wireless Gooseneck Base Transmitter White K51 CH38 - Image 1
Shure ULXD8 Wireless Gooseneck Base Transmitter White K51 CH38 - Image 2
Price:
RRP: £570.00 inc VAT
Code:
SHUULXD8WK51
Manufacturer Code:
ULXD8W=-K51
Brand:
Shure

Quantity required:

Main Features

  • K51 Band: 606-670 MHz
  • Compatible with ULX-D and QLX-D receivers
  • AES 256-bit encryption for applications for which secure transmission is needed
  • Designed for use with Shure Microflex MX405, MX410 and MX415 gooseneck microphones
  • Gooseneck not included
  • Finish: White
Share:

ULXD8 Wireless Gooseneck Base Transmitter White K51 CH38

The ULXD8 Gooseneck Base Transmitter offers a flexible gooseneck mic form factor that is ideal for use at meetings and events where wired microphones are impractical. Paired with a ULX-D or QLX-D digital receiver, the ULXD8 creates a system with low latency, long transmission range, and high channel count, delivering exceptional performance in large meeting venues where live sound reinforcement is required.

Gooseneck microphone not included.

Product Features

  • Compatible with ULX-D and QLX-D receivers
  • Available in UHF TV band, 900 MHz and 1.2/1.5/1.8 GHz bands
  • AES 256-bit encryption for applications for which secure transmission is needed
  • Convenient gooseneck form factor for meetings and events where quick setup and teardown is important
  • Designed for use with Shure Microflex MX405, MX410 and MX415 gooseneck microphones
  • Very short latency (<3 msec)
  • Long transmission range (up to 300 feet/91 meters) for reliable performance
  • Rechargeable SB900B battery pack provides up to 9 hours of battery life
  • Standard AA alkaline batteries are additional power options
  • SBC450 (4-bay) and SBC850 (8-bay) Networked Charging Stations for docked charging of 4 or 8 ULXD6 or ULXD8 transmitters
  • Compatible with the full line of Shure antennas and distribution components
  • Configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and Mute LED behavior
  • Adjustable RF power, high-pass filter, and power lock settings
  • Available in black or white finishes to complement any meeting room aesthetic

Product Specifications

  • Gain Adjustment Range:  0 to 21 dB (in 3 dB steps)
  • Battery Type:  Shure SB900B Rechargeable Li­Ion or AA batteries 1.5 V
  • Battery Runtime @ 10 mW
    • Shure SB900B Up to 8 hours 30 minutes
    • AA batteries Up to 8 hours 20 minutes
  • Dimensions:  136.94 mm x 78.27 mm x 40.77 mm (5.39 in. x 3.08 in. x 1.60 in.) H x W x D
  • Weight:  293 g with AA batteries
  • Operating Temperature Range:  0°C (32°F) to 45°C (113°F)
  • Housing:  Molded Plastic
  • Audio Input
    • Microphone Connector:  6-pin connector for Shure MX405/10/15
    • Configuration:  Unbalanced
    • Impedance:  >20 kΩ
  • RF Output
    • Antenna Type:  Integrated PIFA
    • Impedance:  50 Ω
    • Occupied Bandwidth:  <200 kHz
    • Audio Frequency Response:  50 Hz to 17 kHz (varies with capsule)
    • Modulation Type:  Shure proprietary digital
    • Power:  1 mW, 10 mW, 20 mW See Frequency Range and Output Power table, varies by region
