UVC-02 Advanced USB Audio Video Capture with Mute/Video/Audio Out

« return to previous page

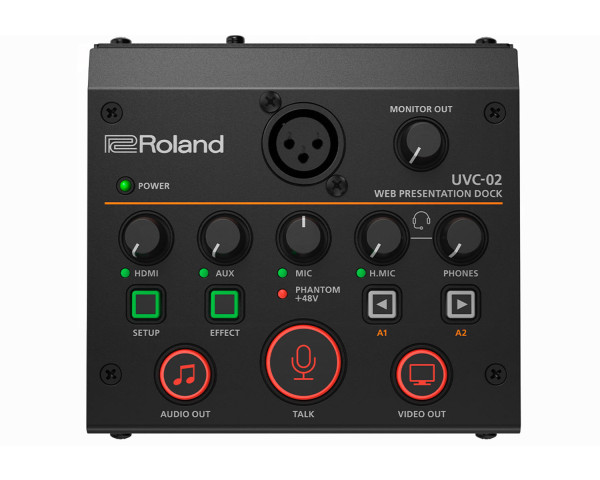

Roland Pro AV UVC-02 Advanced USB Audio Video Capture with Mute/Video/Audio Out - Main Image
Roland Pro AV UVC-02 Advanced USB Audio Video Capture with Mute/Video/Audio Out - Image 1
Roland Pro AV UVC-02 Advanced USB Audio Video Capture with Mute/Video/Audio Out - Image 2
Price:
RRP: £327.00 inc VAT
Code:
ROLUVC02
Manufacturer Code:
UVC-02
Brand:
Roland Pro AV

Quantity required:

Main Features

  • ***NOT JUST A WEB-PRESENTATION DOCK***
  • Convenient and affordable desktop docking station
  • Inputs for a video switcher or camera, and XLR microphone and stereo audio sources
  • Worry-free HDMI video input supports embedded sound
  • Studio-grade sound with Roland’s acclaimed digital audio technology
  • Plug and play operation—automatically appears as a webcam and audio source
Share:

UVC-02 Advanced USB Audio Video Capture with Mute and Video/Audio Out

NOT JUST A WEB-PRESENTATION DOCK!

The advanced alternative for the Roland UVC-01 for converting your professional HDMI and audio sources into an uncompressed USB AV stream for livestreaming and recording.

The UVC-02 is a compact broadcast control centre that fits comfortably on your desktop. It allows you to connect a high-quality HDMI camera, pro microphone, and other audio sources and send them directly to meeting and streaming platforms on your computer via a single USB cable. And with an array of hands-on knobs and switches at your fingertips, you can easily control the action without ever touching your mouse or computer keyboard.

Product Features

  • Convenient and affordable desktop docking station to upgrade your business streaming with pro-level audio and video
  • Inputs for a DSLR or other high-quality camera, an XLR microphone, and stereo audio sources
  • HDMI video input supports embedded sound and features automatic scaling for different video resolutions
  • Studio-grade sound with Roland’s acclaimed digital audio technology
  • Plug and play operation—automatically appears as a webcam and audio source in your favourite streaming software
  • Enhance your streams with professional audio processing, sound effects, and the unique Voice Change effect
  • Hands-on control of volume levels plus audio and video muting
  • Assignable buttons for customizable control, configurable with free UVC-02 software for macOS and Windows
  • Optional CGM-30 high-quality gooseneck microphone
  • Optional use of the free AeroCaster Switcher app for iPad which allows you to create a wireless multi-camera streaming setup with mobile devices.

Product Specifications

Video

  • Input Connector
    • HDMI IN : HDMI type A
    • * HDCP not Supported
    • * Multi-format Supported
  • Input Formats
    • 480/59.94p, 576/50p, 720/59.94p, 720/50p,
    • 1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p,
    • SVGA (800 x 600) 60 Hz / 75 Hz, XGA (1024 x 768) 6 0Hz / 75 Hz,
    • WXGA (1280 x 800)60 Hz / 75 Hz, HD (1280 x 720) 60 Hz / 75 Hz,
    • SXGA (1280 x 1024) 60 Hz / 75 Hz, FWXGA (1366 x 768) 60 Hz / 75 Hz,
    • SXGA+ (1400 x 1050) 60 Hz / 75 Hz, UXGA (1600 x 1200) 60 Hz,
    • FHD (1920 x 1080) 60 Hz
    • * The refresh rate is the maximum value of each resolution.
    • * Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.
  • Output Connectors:  USB STREAM : USB 3.0 Type-B
  • USB Video Output Format:  YUY2 (Uncompressed), Motion JPEG (Compressed)
  • USB Video Output Resolution
    • 1920 x 1080, 1280 x 720, 640 x 480
    • * Maximum frame rate is 60 fps.

Audio

  • Audio Processing:  Sample Rate 48 kHz, 24 bits
  • Analog Connectors
    • MIC:  XLR type (Balanced, Phantom power DC 48V, 14 mA Max)
    • HEADSET:  Stereo miniature phone type (CTIA, PLUG-IN power)
    • AUX IN:  Stereo miniature phone type
    • MONITOR OUT:  Stereo miniature phone type
  • Digital Connectors
    • HDMI IN:  HDMI Type A
    • USB STREAM:  USB 3.0 Type-B
  • Nominal Input Level
    • MIC IN:  -54 to -14 dBu (Maximum input level : +4 dBu)
    • HEADSET:  -20 dBu (Maximum input level : -2 dBu)
    • AUX IN:  -10 dBu (Maximum input level : +8 dBu)
  • Nominal Output Level
    • MONITOR OUT:  -10 dBu
    • HEADSET:  9 mW + 9 mW (32 ohms load)
  • Input Impedance
    • MIC IN:  5.8 k ohms
    • AUX IN:  10 k ohms
    • HEADSET:  1 k ohms
  • Output Impedance
    • MONITOR OUT:  1 k ohms
    • HEADSET:  22 ohms
  • Digital Audio Format
    • HDMI IN:  Linear PCM, 48 kHz / 44.1 kHz, 24 / 20 / 16 bits, Stereo
    • USB STREAM:  Linear PCM, 48 kHz, 16 bits, Stereo
  • Audio Effects
    • Anti-Feedback, Echo Canceller, Ducker, Voice Changer, Reverb, Noise Suppressor, Equalizer, Expander, Compressor, Delay
  • Audio File Player
    • Number of tracks:  2
    • Data Formats:  WAV (Linear PCM, 48 kHz, 16 bits, stereo / mono)
    • Maximum Time:  5 seconds / track
