VIA5004 4 Channel Class D 4x1250W @ 2Ω Power Amp 2U

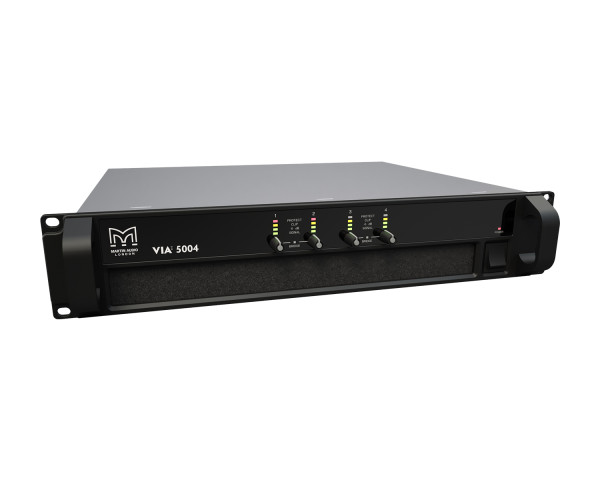

Martin Audio VIA5004 4 Channel Class D 4x1250W @ 2Ω Power Amp 2U - Main Image

Price:: RRP: £3,000.00 inc VAT
Code:: MAUVIA5004
Manufacturer Code:: VIA5004
Brand:: Martin Audio

Main Features

Four channels of efficient Class D amplification
5000 Watts total power output
2U rack height
Exceptionally lightweight
Switch mode power supply
Variable speed cooling fan with front-to-back airflow

VIA5004 4 Channel Class D 4x1250W @ 2ohms Power Amplifier 2U

The VIA5004 is an advanced 4-channel power amplifier which combines high power density with superb audio performance in a lightweight, cost-effective package. Delivering 4 x 1250 watts into 2 ohms, or 2 x 2500 watts into 4 ohms bridged, it is ideal for powering Blackline X, CDD and V.Series systems in small to medium-scale installations and portable sound applications. It can also be configured for 3-channel operation, for perfect compatibility with TH Series 3-way systems.

Its high efficiency design reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound in demanding environments with reliability and ease.

Comprehensive protection functions continuously monitor its performance to maintain safe operating conditions and full output capability in ambient temperatures up to 40°C.

Product Features

Four channels of efficient Class D amplification
5000 Watts total power output
2U rack height
Exceptionally lightweight
Switch mode power supply
Variable speed cooling fan with front-to-back airflow
Global mains operation, 115V to 230V auto-sensing
Comprehensive protection systems
Signal and clip limiter LEDs

Product Specifications

General

TYPE: Four-channel Class D amplifier
POWER OUTPUT:
- 4 x 1250W into 2 ohms
- 4 x 800W into 4 ohms
- 4 x 450W into 8 ohms
- 2 x 2500W bridged into 4 ohms
COOLING: Vari-speed fans, front-to-back airflow
MAXIMUM AMBIENT TEMPERATURE: 40°C (105°F)
ANALOGUE IN/LINK (4 CHANNELS): 4 x female, 4 x male Neutrik™ XLR
ANALOGUE INPUT IMPEDANCE: 10KΩ balanced
MAXIMUM ANALOGUE INPUT LEVEL: +20dBu
AMPLIFIER OUTPUTS: 4 x Neutrik Speakon™ NL4
OUTPUT NOISE: -113dBA, referenced to max output (22kHz bandwidth)
FREQUENCY RESPONSE: <10Hz ->20kHz +/- 0.25dB
TOTAL HARMONIC DISTORTION: <0.05% typical @ 1kHz, -3dB output (22kHz bandwidth)
SLEW RATE: > 80V per microsecond
DAMPING FACTOR: 120 ref 8 ohms
POWER SUPPLY: 2 x high current, high frequency switch-mode
AC OPERATING RANGE:
- 100-240V +/-10%
- 45 - 65Hz
TOTAL SYSTEM EFFICIENCY: > 90% typical
MAINS CONNECTOR: 1 x Neutrik Powercon™
