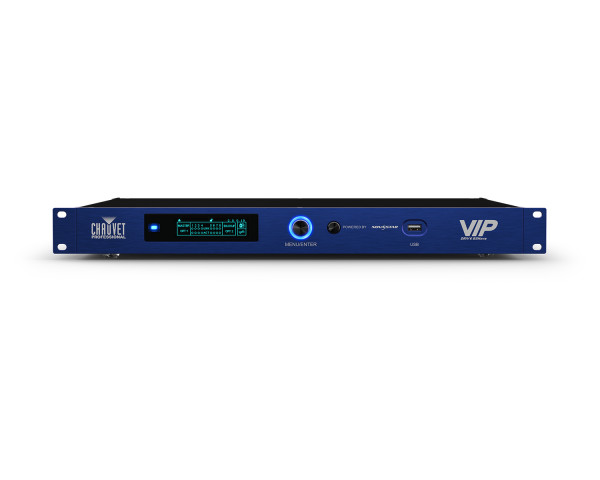

VIP Drive 83R Nova All-in-One Video Mapper / Switcher

Product Features

• Video wall processor that outputs video signal to any Novastar video panel (including F2, F3, F4IP, F5IP, F6 Strip IP, and Vivid 4)
• Specialized receiver card rotation function allows the VIP Drive 83R Nova to individually rotate video panels in the Smart-LCT mapping software
• Automatically detect connected video panels/strips in the Smart-LCT mapping software without the need to manually input panel/strip resolution
• Powerful standalone mapping configures most video walls without a computer
• Custom MAPPING function makes setting up your wall fast and easy with on-screen visual feedback
• Using the onscreen controls, you can individually rotate each port
• Specialized on-screen mapping overlay makes mapping fast and easy by identifying the port and order of each video panel live, while video continue to play in the background
• Supports Dual-link DVI, HDMI 1.4, and 6G-SDI for flexibility in various applications
• 8 etherCON video outputs support 4K at 5.24 million LED resolution
• Works with NovaLCT-Mars and Smart-LCT software for complex configurations and panel calibration
• Compact 1U packing eases transportation and integration into your existing setup
• Fiber output for all 8 ports of the processor (primary and backup)
• Mode selection in menu allows the processor to function as both a regular sender via Ethernet to your screen, a fiber sender to send fiber to your fiber converter, and a fiber converter to receive fiber in from another fiber sender
• New Genlock input and loop supports synchronizing multiple VIP processors in a screen
• Dual, redundant power supplies ensure absolute stability

Product Specifications

Construction/Physical

• Dimensions:  19 x 12 x 1.7 in (483 x 335 x 52 mm)
• Weight:  9.5 lb (4.3 kg)
• Housing Material:  Aluminium alloy
• Rackmount:  1U

Connections

• Power Connection:  Edison (Local) plug to IEC
• Power Input:  IEC
• Cable Length (power):  5 ft (1.5 m)
• Video Input:  Dual-link DVI-I (VESA standard, 1080i, HDCP support)
• Video Input:  HDMI (EIA/CEA-861 standard, meeting HDMI-1.4 standard, HDCP support)
• Video Input:  6G-SDI (480i, 576i, 720p, 1080i/p)
• Video Output:  Neutrik® etherCON® (8)
• Video Output:  SFP-LC Fiber optical (2) (SFP fiber module not included)
• Genlock Input:  Blackburst via locking BNC
• Genlock Loop Output:  Blackburst via locking BNC
• Linking Connection:  USB
• Software Connection:  Front/Rear USB
• Backup/update Connection:  Front/Rear USB

Control

• Control Protocol:  NOVASTAR
• Maximum Supported Input Resolution:  3840 x 1080
• Maximum Supported LEDs:  5,242,880
• Remote Control:  NovaLCTMars PC software via front/rear USB (1)
• Supported Video Standards (Dual-link DVI):  DVB-ASI
• Supported Video Standards (HDMI):  HDMI 1.4, and DVB-ASI
• Supported Video Standards (6G-SDI):  SMPTE 424M, SMPTE 292M, SMPTE ST-2081 (proposed), SMPTE 259M compliant
• Colour Space Supported (DVI):  RGB 4:4:4
• Colour Space Supported (HDMI):  RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2
• Colour Space Supported (6G-SDI):  RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:  40 W, 0.33 A @ 120 V, 60 Hz
• Power and Current:  40 W, 0.19 A @ 208 V, 60 Hz
• Power and Current:  40 W, 0.17 A @ 230 V, 50 Hz

Certifications/Qualifications

• UL, CE, FCC, ROHS
• IP Rating:  IP20, dry location

What's in the Box?

• VIP Drive 83R Nova
• Rubber feet (4)
• IEC power cord
• USB cable
• HDMI signal cable
• Cat5e Ethernet cable
• Warranty Card
