Vocia VI-8 8-Channel Paging Network Audio Input Expander

« return to previous page

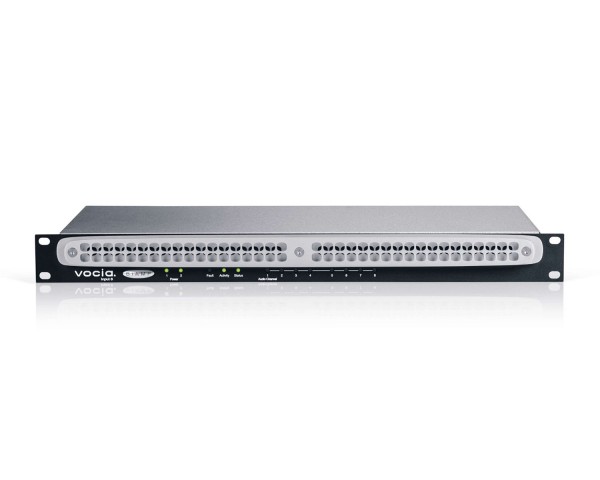

Biamp Vocia VI-8 8-Channel Paging Network Audio Input Expander - Main Image
Biamp Vocia VI-8 8-Channel Paging Network Audio Input Expander - Image 1
Biamp Vocia VI-8 8-Channel Paging Network Audio Input Expander - Image 2
Price:
RRP: £3,744.00 inc VAT
Code:
BIAVVI8
Manufacturer Code:
913.0384.900
Brand:
Biamp

Quantity required:

Main Features

  • 8 analogue mic/line level or CobraNet inputs
  • 1 logic and 4 relay control outputs
  • 8 logic inputs
  • Device status monitoring via control logic input and output
  • Power via dual 24V DC inputs (redundant inputs) power supply included
  • Software-configurable signal processing including volume control, filters, and compressor/limiting
Share:

Vocia VI-8

The Vocia Input 8 (VI-8) is designed to facilitate live audio paging from user sources to emergency and non-emergency zones in a Vocia system. The VI-8 will allow direct paging access from eight sources via analog mic/line level inputs or CobraNet digital audio connections. Nine logic inputs can be assigned to various Vocia control events including paging control. A logic output and four relay outputs can be assigned to control events. The logic output may be used to report status from one or several daisy-chained VI-8s to an external system. The logic inputs and output are monitored.

Product Features

  • 8 analogue mic/line level or CobraNet inputs
  • 1 logic and 4 relay control outputs
  • 8 logic inputs
  • Device status monitoring via control logic input and output
  • Power via dual 24V DC inputs (redundant inputs) power supply included
  • Software-configurable signal processing including volume control, filters, and compressor/limiting
  • Rack mountable (1RU)
  • Dual CobraNet ports for redundant Ethernet connections
  • Device and logic I/O status monitoring
  • Rotary switches for device identification
  • IP30 compliant
  • CE marked and RoHS compliant
  • Covered by Biamp Systems’ five-year warranty

Product Specifications

General

  • Network Connections: Dual RJ45 with shielded Ethernet (CAT5, CAT5e, CAT6, or CAT7)
  • Network Audio: 20-bits, 48kHz, 5-1/3ms (fixed)
  • Frequency Response (20Hz~20kHz): +0, -1dB
  • THD+N (20Hz~20kHz): <0.05%
  • Dynamic Range: >100dB
  • Equivalent Input Noise: < -125dBu
  • Crosstalk (10kHz): < -75dB
  • Input Impedance: 8kΩ
  • Maximum Input Level: 24dBu
  • Phantom Power: 48V DC behind 6.8kΩ per leg
  • Power:
    • DC Input: 24V DC; <100mV Ripple (Max 35W)
    • DC Reference Output: 24V; 100mA limited
  • Control Inputs:
    • Quantity: 9
    • High Range Logic Low: 0-8V DC
    • High Range Logic High: 12-30V DC
    • TTL Logic Low: 0–0.8V
    • TTL Logic High: 2-5V
    • Contact Closure: 10V Internal Reference
    • Input Transient Protection: ± 8kV Peak
    • Input Isolation: 500V RMS
  • Control Outputs:
    • Quantity: 4
    • Type: Form C Voltage free change over contact
    • Max Operating Voltage: 125VAC, 60VDC
    • Max Switching Capacity: 37VA
    • Min Operating Load: 10μA @ 10mV DC
    • Status Out Type: FET Switch, open drain (low side driver)
    • Max Operating Voltage: 35V
    • Max Continuous Current: 0.35A
    • Current Limit: 0.8A
  • Environment:
    • Ambient Operating Temperature Range: 18-108° F (-8 – 42° C)
    • Humidity: 0 – 95% non-condensing
    • Altitude: 0–10,000 Feet (0-3000 meters) MSL
  • Sample Rate: 48kHz
  • A/D Converters: 24-bit

Dimensions

  • Height: 1.75 inches (44 mm)
  • Width: 19 inches (483 mm)
  • Depth: 10 inches (254 mm)
  • Weight: 6.6 lbs (3kg)

Compliance

  • FCC Part 15B (USA)
  • CE marked (Europe)
  •  RCM (Australia)
  • EAC (Eurasian Customs Union)
  • RoHS Directive (Europe)
