WBH54B Supercardioid Condenser Headset Microphone Black with TA4F

« return to previous page

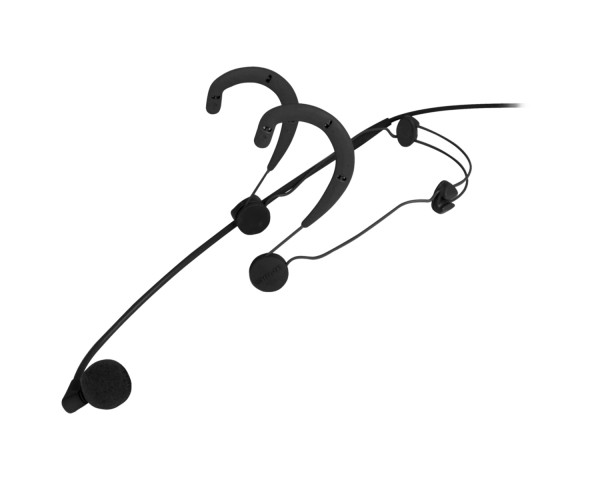

Shure WBH54B Supercardioid Condenser Headset Microphone Black with TA4F - Main Image
Price:
RRP: £480.00 inc VAT
Code:
SHUWBH54B
Manufacturer Code:
WBH54B
Brand:
Shure

Quantity required:

Main Features

  • Supercardioid polar pattern provides maximum gain-before-feedback and ambient rejection
  • Cable length: 150 cm
  • Extended frequency response tailored for vocal performances
  • Able to handle extremely high sound pressure levels
  • Snap-fit foam windscreens stay in place during intensive movement
  • TA4F connector for wireless application
Share:

WBH54B Supercardioid Condenser Headset Microphone Black with TA4F

Headworn vocal microphone delivers a warm, natural sound with maximum gain-before-feedback and ambient noise rejection.

Product Features

  • Supercardioid polar pattern provides maximum gain-before-feedback and ambient rejection
  • Cable length: 150 cm
  • Extended frequency response tailored for vocal performances
  • Able to handle extremely high sound pressure levels
  • Snap-fit foam windscreens stay in place during intensive movement
  • TA4F connector for wireless application
  • Finish: Black

Product Specifications

  • Type:  Electret Condenser
  • Frequency Response:  50 to 20,000 Hz
  • Polar Pattern:  Supercardioid
  • Output Impedance (RPM627):  160 Ω
  • Sensitivity at 1kHz, open circuit voltage:  -56.0 dBV/Pa(1.58 mV)
  • Maximum SPL 1 kHz at 1% THD:  152.5 dB
  • Dynamic Range at 1kHz:  109.4 dB
  • Self Noise equivalent SPL, A-weighted, typical  43.1 dB
  • Power Requirements:  +5 V DC
  • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
  • Weight:  35 g(1.25 oz.)

What's in the Box?

  • 1 x Headband
  • 2 x Snap-fit Foam Windscreen
  • 2 x Standard Protective Cap
  • 1 x Swiveling Lapel Clip
  • 2 x Boom Holder
  • 1 x Logo Pad
  • 1 x Plastic Carrying Case
