WMD5200 Digital Wireless Handheld Mic with Condenser Capsule

« return to previous page

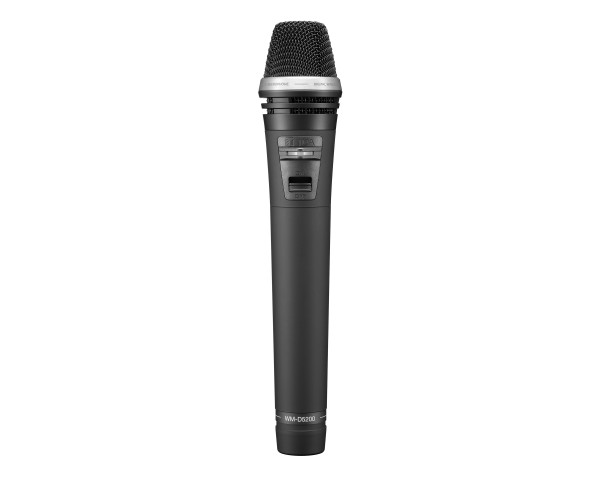

TOA WMD5200 Digital Wireless Handheld Mic with Condenser Capsule - Main Image
Price:
RRP: £354.00 inc VAT
Code:
TOAWMD5200
Manufacturer Code:
WM-D5200 G01
Brand:
TOA

Quantity required:

Main Features

  • Employs an electret condenser microphone capsule
  • Suitable for any applications
  • Employs a digital transmission system that is effectively immune to interference
  • Unique information concealment technology ensures high confidentiality and security
  • Code setting & transmission output functions ensure compatibility with range of conditions
  • Suitable for use of the same transmission channel between adjacent areas
Share:

WMD5200 Digital Wireless Handheld Mic with Condenser Capsule

The WM-D5200 Digital wireless microphone employs an electret condenser microphone capsule and is suitable for any applications. This wireless microphone employs a digital transmission system that is effectively immune to interference. Further, not only does TOA's unique information concealment technology (Encryption Setting function) ensure high confidentiality and security against eavesdropping, but their code setting and transmission output selection functions ensure that this microphone is also compatible with a wide range of operating conditions, such as use of the same transmission channel between adjacent areas.

Product Features

  • Employs an electret condenser microphone capsule
  • Suitable for any applications
  • Employs a digital transmission system that is effectively immune to interference
  • Unique information concealment technology (Encryption Setting function) ensures high confidentiality and security against eavesdropping
  • Code setting and transmission output selection functions ensure that this microphone is also compatible with a wide range of operating conditions
  • Suitable for use of the same transmission channel between adjacent areas

Product Specifications

General

  • Microphone Element: Electret condenser unit: Unidirectional
  • Modulation type: FSK
  • Frequency Range: C4/C7 ver.: 794 - 832 MHz, G1 ver.: 606 - 636 MHz
  • Channel Selectable: 160 channels (The number of channels may differ from country to country.)
  • RF Carrier Power: Less than 50 mW
  • Maximum Input Level: 132 dB SPL (Sensitivity: L)/122 dB SPL (Sensitivity: H)
  • Audio Frequency Response: 100 Hz - 12 kHz
  • Antenna: Built-in type
  • Dynamic Range: Typ. 90 dB (when used with WT-D5800)
  • ID Selectable: 10 patterns
  • Battery: WB-2000 rechargeable battery (option) or AA Alkaline dry cell battery
  • Battery Life: Approx. 8 hours
  • Operating Temperature: -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) (except battery)
  • Operating Humidity: 30 % to 85 %RH (no condensation)
  • Finish
    • Body: ABS resin, black, coating
    • Head: Steel, black, paint

Physical & Dimensions

  • Height: 239.5mm
  • Diameter: 47mm
  • Weight: 220g (with battery)

What's in the box?

  • Storage case
  • Screw driver (for setting)
  • Microphone holder
