Workhorse Komit 500 Series Combo Compressor and Limiter

« return to previous page

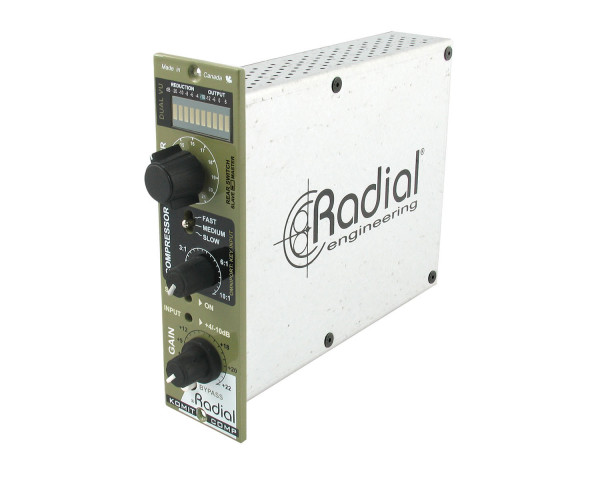

Radial Workhorse Komit 500 Series Combo Compressor and Limiter - Main Image
Radial Workhorse Komit 500 Series Combo Compressor and Limiter - Image 1
Radial Workhorse Komit 500 Series Combo Compressor and Limiter - Image 2
Price:
RRP: £755.94 inc VAT
Code:
RAD500KOMIT
Manufacturer Code:
R700-0150-00
Brand:
Radial

Quantity required:

Main Features

  • Single knob compression for easy use
  • Automatically shifts from soft to hard knee
  • Brick wall limiter for ultra clean recording
  • Diode-bridge clipper circuit adds distortion
  • Adds character and ‘balls’ to a track
  • Brings creative effects to your music
Share:

Workhorse Komit 500 Series Combo Compressor and Limiter

The Komit provides superior dynamics control that one would expect from a studio grade compressor/limiter, along with vintage character and tone to help your tracks stand out in the mix. A transparent VCA compressor is easily configured with a three-position switch to set the speed of the attack & release times, a variable compression ratio, and a makeup gain control. This is augmented with an old school diode-bridge clipping limiter, with ten settings that increasingly clip the input signal for results that range from subtle analogue clipping to over-the-top distortion. The limiter can also be set for brick wall operation to prevent overloading digital recorder inputs, and both the inputs and outputs feature vintage style Hammond broadcast transformers add extra warmth to the signal path.

Product Features

  • Single knob compression for easy use
  • Automatically shifts from soft to hard knee
  • Brick wall limiter for ultra clean recording
  • Diode-bridge clipper circuit adds distortion

Applications

  • Controls excessive peaks when recording
  • Smooths out vocal tracks
  • Adds character and ‘balls’ to a track
  • Brings creative effects to your music

Cool factors

  • Sets up quickly for voice or instrument
  • Great sounding compression every time!
  • Stereo link for program material
  • Instant ‘9 Inch Nails’ crunch

Product Specifications

  • Audio circuit type:  Feed Forward with True RMS Sidechain.
  • Frequency response:  20Hz~20kHz, -2dB @ 20Hz
  • Total harmonic distortion:  0.025% @ 1 kHz.
  • Intermodulation Distortion:  < 0.1% @ 80Hz/3kHz
  • Input Impedance:  9.6k Ohms
  • Output Impedance:  140 Ohms
  • Maximum Output:  +22dBu
  • Data Compression:  72mA, ± 16VDC
  • Conditions:  For use in dry locations only between 5°C and 40°C
  • Warranty:  Radial 3-year, transferable
