WS-5265 UHF 64Ch Handheld Mic System (WM5265+WT5810) D04 CH70

« return to previous page

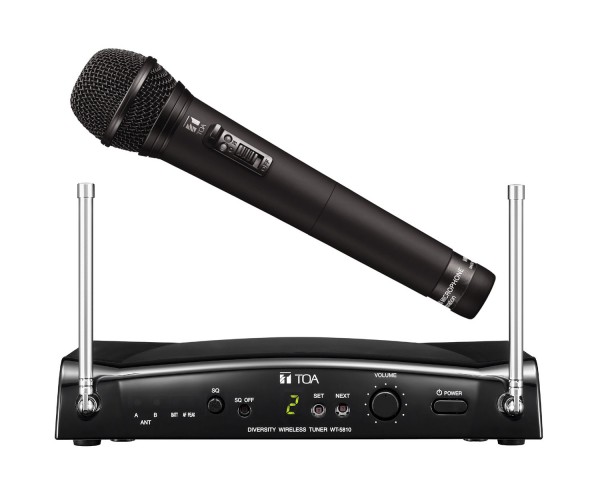

TOA WS-5265 UHF 64Ch Handheld Mic System (WM5265+WT5810) D04 CH70 - Main Image
TOA WS-5265 UHF 64Ch Handheld Mic System (WM5265+WT5810) D04 CH70 - Image 1
TOA WS-5265 UHF 64Ch Handheld Mic System (WM5265+WT5810) D04 CH70 - Image 2
TOA WS-5265 UHF 64Ch Handheld Mic System (WM5265+WT5810) D04 CH70 - Image 3
Price:
RRP: £498.00 inc VAT
Code:
TOAWS5265D
Manufacturer Code:
WS-5265-D04
Brand:
TOA

Quantity required:

Main Features

  • Diversity operation
  • Automatic frequency scan
  • Additional audio mixing input
  • Adjustable triple-squelch
  • High-quality dynamic handheld microphone with a hyper-cardioid pickup pattern
  • Slim, extremely lightweight and can be held comfortably and securely
Share:

WS-5265 UHF 64Ch Handheld System (WM5265+WT5810) D04 CH70

WT-5810 D04ER

The WT-5810 is a PLL-synthesizer controlled double superheterodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.

WM-5265 Dynamic Handheld Transmitter

The WM-5265 Wireless Microphone employs a dynamic microphone capsule and is suitable for any applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission.

Product Features

WT-5810 D04ER

  • Diversity operation
  • Automatic frequency scan
  • Additional audio mixing input
  • Adjustable triple-squelch
  • Battery status indicator
  • Provides 16 intermodulation-free frequencies
  • Allows simultaneous operation for up to 16 WT-5810 units without running the risk of interferences
  • Excellent unit to take to every gig or lecture
  • Other features: Battery status LED, channel display, AF peak LED, antenna A/B-LED

WM-5265 Dynamic Handheld Transmitter

  • High-quality dynamic handheld microphone with a hyper-cardioid pickup pattern
  • Slim, extremely lightweight and can be held comfortably and securely
  • Comes with an indispensable on/off switch, which at the same time acts as a rolling stopper
  • Due to its extremely high maximum sound pressure level, it is perfectly suitable for speech as well as vocal applications

Product Specifications

WT-5810 D04ER

  • Power source (combined):  AC mains (supplied AC adapter must be used)
  • Power supply:  12 V DC, 130 mA
  • Diversity principle:  Space diversity (antenna switching)
  • Frequency response (combined):  100 Hz - 15 kHz
  • Receiving frequency:  863 - 865 MHz
  • Automatic frequency scan:  Yes
  • Receiver sensitivity:  20 dBμV (S/N >90 dB, 40 kHz deviation)
  • Antenna inputs:  No (fixed rod antenna)
  • Nominal output level:  Mic: -60 dBV, line: -20 dBV
  • Audio output:  XLR balanced (mic), ¼“ jack unbalanced (line)
  • Audio mixing input:  ¼“ jack unbalanced
  • Indicator:  ANT A/B, Audio (peak), Battery alarm, Channel number
  • Selectable frequencies (combined):  16
  • Simultaneous channels (combined):  16 (16)
  • Input sensitivity:  Line (-20 dBV)
  • S/N ratio (combined):  104 dB (A)
  • Dimensions (W x H x D):  206 x 40,6 x 152,7 mm
  • Dimensions (ø x D):  x 152,7 mm
  • Finish:  Resin, black
  • Operating humidity:  30 % - 85 % RH
  • Operating temperature:  –10°C to +50°C (14°F to 122°F)

WM-5265 Dynamic Handheld Transmitter

  • Power source:  Battery (1 AA size alkaline battery, 1.5 V or WB-2000-2)
  • Battery life:  10 h
  • Microphone type:  Dynamic
  • Directivity:  Hypercardioid
  • Frequency range:  863 – 865 MHz
  • Selectable frequencies:  64
  • Simultaneous channels:  4
  • AF response:  100 Hz - 15 kHz
  • RF output power:  10 mW
  • Maximum SPL:  132 dB
  • Operating humidity:  30% - 85%
  • Operating temperature:  -10°C ... +50°C
  • Finish:  Resin, black
  • Dimensions:  50 x 229 mm (Ø x D)
  • Weight:  205 g (with battery)
