X15 BlacklineX 15" 2-Way Passive Speaker Rotatable 90x50° Black

« return to previous page

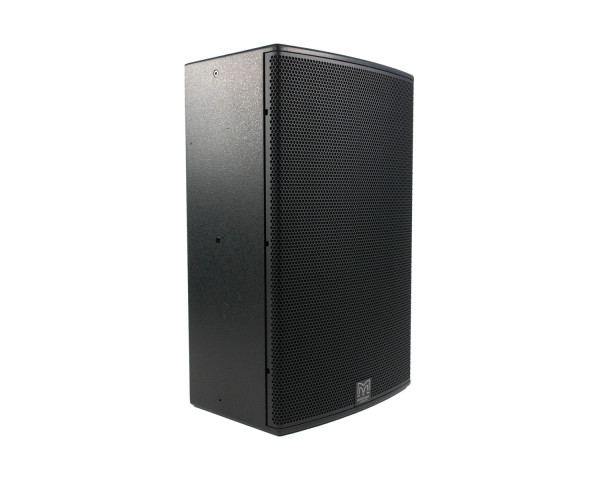

Martin Audio X15 BlacklineX 15 2-Way Passive Speaker Rotatable 90x50° Black  - Main Image
Martin Audio X15 BlacklineX 15 2-Way Passive Speaker Rotatable 90x50° Black  - Image 1
Martin Audio X15 BlacklineX 15 2-Way Passive Speaker Rotatable 90x50° Black  - Image 2
Martin Audio X15 BlacklineX 15 2-Way Passive Speaker Rotatable 90x50° Black  - Image 3
Martin Audio X15 BlacklineX 15 2-Way Passive Speaker Rotatable 90x50° Black  - Image 4
Martin Audio X15 BlacklineX 15 2-Way Passive Speaker Rotatable 90x50° Black  - Image 5
Martin Audio X15 BlacklineX 15 2-Way Passive Speaker Rotatable 90x50° Black  - Image 6
Price:
RRP: £960.00 inc VAT
Code:
MAUX15B
Manufacturer Code:
X15B
Brand:
Martin Audio

Quantity required:

Main Features

  • High power, passive two-way system
  • Symmetrical multi-angle plywood enclosure
  • User-rotatable 80 x 50 degree horn
  • Vertical and horizontal orientation
  • Screw-free, cloth-backed perforated steel grille
  • Integral ergonomic handle
Share:

Blackline X15 Passive Two-Way System - Black

The Blackline X15 is a very high-power, passive two-way system designed for professional portable applications and installations that demand the ultimate in sonic performance from a single enclosure. With an accurately-defined 80° x 50° coverage pattern, it combines very high output capability with exceptional sonic performance and impact.

Featuring a powerful 15” (380mm)/3” (75mm) voice coil LF drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” (44mm) polyimide diaphragm for extended high frequency response.

The X15 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for a wall bracket and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint.

A full-range passive two-way system, the X15 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5 will maximise its capabilities. When used in conjunction with an X115, X118 or X210 subwoofer, crossover and EQ functions can be performed by the DX0.4 or DX0.6.

Product Features

  • High power, passive two-way system
  • Symmetrical multi-angle plywood enclosure
  • User-rotatable 80° x 50° horn
  • Vertical and horizontal orientation
  • Screw-free, cloth-backed perforated steel grille
  • Integral ergonomic handle
  • Pole-mount bung maintains clean lines
  • 8Ω nominal impedance
  • Twin NL4 connectors
  • Flexible mounting options via M8 inserts
  • Finish: Black

Product Specifications

General

  • Type:  High-power, passive two-way system
  • Frequency Response:  55Hz-20kHz ± 3dB, -10dB @ 45Hz
  • Driver:  LF: 15” (380mm)/3” (75mm) voice coil, ferrite motor system
  • HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
  • Rated Power:  400W AES, 1600W peak
  • Recommended Amplifier:  MA3.0, MA5.0Q
  • Sensitivity:  99dB
  • Maximum SPL:  125dB continuous, 131dB peak
  • Nominal Impedance:  8 ohms
  • Dispersion (-6dB):  80° H x 50° V (user-rotatable)
  • Crossover:  2.2kHz passive
  • Enclosure:  Multi-angle birch/poplar ply
  • Finish:  Black textured paint
  • Protective Grille:  Black perforated steel with scrim cloth backing
  • Connectors:  2 x NL4 type
  • Pin Connections (INPUT):  1+/1-
  • Pin Connections (LINK):  1+/- to 1+/-

Physical & Dimensions

  • Fittings:  19 x M8 inserts, pole-mount socket, 2 x bar handles
  • Dimensions:  (W) 427mm x (H) 690mm x (D) 419mm
  • Weight:  24kg

Applications

  • Portable sound reinforcement
  • Live music clubs
  • Bars and restaurants
  • Nightclubs
  • Unobtrusive stage monitoring
  • Corporate AV events and conferences
  • Weddings and parties
  • Main PA infill
  • Secondary stages at festivals
  • HoW, leisure centres and retail outlets

Accessories

  • Wall bracket
  • Eyebolts
