XLS 1002 DriveCore 2 Power Amp with DSP 2x350W @ 4Ω 2U

« return to previous page

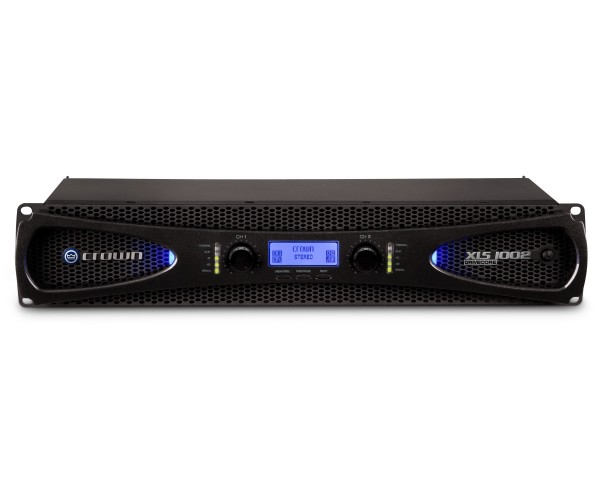

Crown XLS 1002 DriveCore 2 Power Amp with DSP 2x350W @ 4Ω 2U - Main Image
Crown XLS 1002 DriveCore 2 Power Amp with DSP 2x350W @ 4Ω 2U - Image 1
Crown XLS 1002 DriveCore 2 Power Amp with DSP 2x350W @ 4Ω 2U - Image 2
Crown XLS 1002 DriveCore 2 Power Amp with DSP 2x350W @ 4Ω 2U - Image 3
Crown XLS 1002 DriveCore 2 Power Amp with DSP 2x350W @ 4Ω 2U - Image 4
Price:
RRP: £709.00 inc VAT
Code:
CROXLS1002
Manufacturer Code:
CRO0327
Brand:
Crown

Quantity required:

Main Features

  • Class D amp with Crown's ultra-efficient DriveCore technology
  • Increased lighting functionality
  • Integrated PureBand Crossover System
  • Efficient forced-air fans prevent excessive thermal buildup
  • Remote power trigger
  • Weighs less than 5kg
Share:

XLS1002 DriveCore Class-D Amp with X-Over 2x350W @ 4ohm 2U

The next generation of XLS got a makeover with a sleek new look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new XLS is ultra-efficient with Crown’s patented DriveCore technology and can drive 2400W at 4Ω bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.

Product Features

  • Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lb (5 kg)
  • Higher DSP capabilities: More control; has band pass filter per channel
  • Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
  • Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power
  • Set sleep mode after specified time without having to press a button
  • Security setting disables menu buttons; menu locked/unlocked by entering combination
  • System reset allows factory settings to be restored
  • Remote power trigger
  • Peakx™ Limiters provide maximum output while protecting your speakers
  • XLR, 1/4", RCA inputs provide flexibility
  • Integrated PureBand™ Crossover System for better performance and control
  • Efficient forced-air fans prevent excessive thermal build-up

Product Specifications

General

  • Sensitivity: 1.4Vrms
  • Frequency Response: +0dB, -1dB
  • Signal to Noise: > 97dB (at .775Vrms sensitivity, 6dB lower)
  • Intermodulation Distortion: < 0.3%
  • Damping Factor: > 200
  • THD: < 0.5%
  • Crosstalk: At 1kHz: > 85dB, At 20kHz: > 55dB

Physical & Dimensions

  • Height: 3.5"
  • Width: 19"
  • Depth: 7.7"
  • Weight: 3.9kg
