Main Features
Reversible module for 8-bay 2U converter rack (sold separately)
Video Input: 1 x 3G/HD/SD SDI BNC
Loop-thru: 1 x 3G/HD/SD SDI BNC (no delay)
Video Output: 4 x 3G/HD/SD SDI BNC (delayed & mirrored)

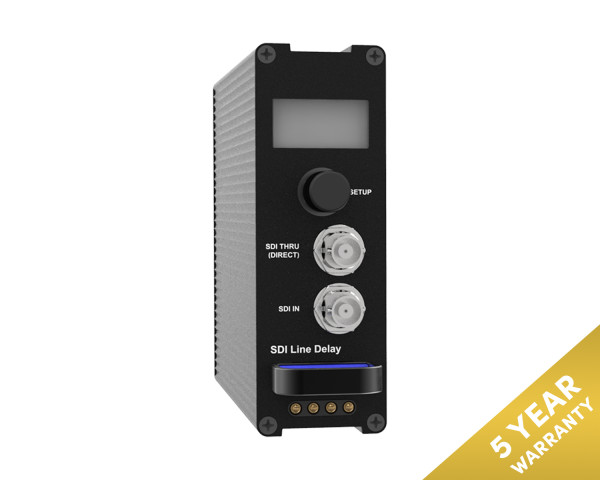

xVision Reversible HD 1:4 3G-SDI Line Delay Distribution Amp
The SDI Line Delay Rack Module is a unit option for the 8-Bay Reversible Rackmount Converter system. The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.
Product Features
Reversible module for 8-bay 2U converter rack (sold separately)
Video Input: 1 x 3G/HD/SD SDI BNC
Loop-thru: 1 x 3G/HD/SD SDI BNC (no delay)
Video Output: 4 x 3G/HD/SD SDI BNC (delayed & mirrored)
Supports up to HD Formats
Embedded Audio: Up to 16 channels, 24bit, 48kHz
Product Specifications
Connections
Video Input: 1 x 3G/HD/SD SDI BNC
Loop-thru: 1 x 3G/HD/SD SDI BNC (no delay)
Video Output: 4 x 3G/HD/SD SDI BNC (delayed & mirrored)
Processing
Maximum Delay: 160 frames (2690ms @ 60Hz)
Delayed Elements: Entire SDI payload, including audio & meta
Adjustment: By the frame or by the millisecond, using onboard OLED display and rotary wheel
Supported Signals
3G Format Support: 1920×1080p @ 60/50 fps
HD Format Support:
1920×1080p @ 30/25/24fps,
1920×1080i @ 60/50fps,
1280×720 p @ 60/50 fps,
1280×720 i @ 60/50 fps,
1280×720p @ 30/25/24 fps
SD Format Support: 720×480i @ 60fps, 720×576i @ 50fps
Embedded Audio: Up to 16 channels, 24bit, 48kHz
SMPTE Standards: ST425M Level A & B, ST424M, ST292M, ST259M
Environmental Specifications
Relative Humidity: 0% to 90% non-condensing
Operating Temperature: 0-40 °C
Power Requirements
Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
