YW1022 TS Series Conference System Distributor I/R

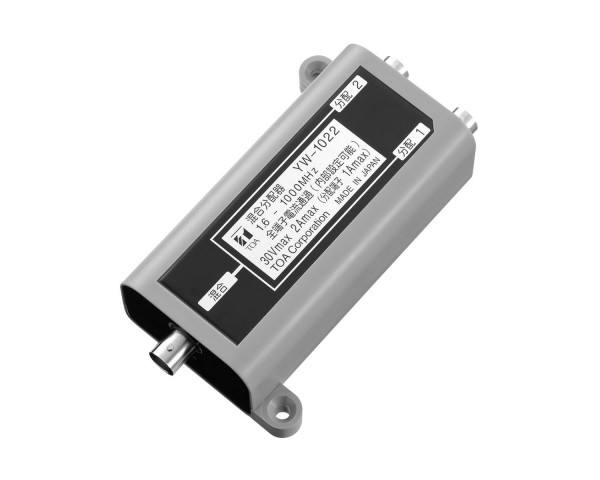

TOA YW1022 TS Series Conference System Distributor I/R - Main Image

Price:: RRP: £138.00 inc VAT
Code:: TOAYW1022
Manufacturer Code:: YW-1022
Brand:: TOA

Main Features

For 2-branch distribution (1 into 2 outputs)
Frequency range of 1.6 to 1000 MHz (except 50 to 70 MHz)
Power passing type permits easy power supply
Input/Output Impedance: 75 Ω
ABS Resin
Finish: Grey

The YW-1022 is a distributor that can work in the frequency range of 1.6 to 1000 MHz (except 50 to 70 MHz). Power passing type permits easy power supply.

Product Features

For 2-branch distribution (1 into 2 outputs)
Frequency range of 1.6 to 1000 MHz (except 50 to 70 MHz)
Power passing type permits easy power supply
Input/Output Impedance: 75 Ω
ABS Resin
Finish: Grey

Product Specifications

Frequency Range: 1.6 - 1000 MHz (excluding 50 - 70 MHz)
Distribution Loss: 4.5 dB ±3 dB (between the Mixing and each Distribution terminals)
Input/Output Impedance: 75 Ω
Coaxial Connector:
- Mixing terminal: BNC jack, power passing type (30 V DC or less, 2 A or less)
- Distribution 1 and 2 terminals: BNC jack, power passing type (30 V DC or less, 1 A or less)
Operating Temperature: -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Operating Humidity: 90 %RH or less (no condensation)
Finish: ABS resin, grey
Dimensions: 75 (W) × 122 (H) × 34 (D) mm (2.95" × 4.8" × 1.34")
Weight: 105 g (0.23 lb)
Accessory: Unit fixing wood screw (4.1 × 25) x 2
