ZonePad 8 8" Touchscreen Wall Controller for up to 8-Zones

« return to previous page
Optimal Audio ZonePad 8 8 Touchscreen Wall Controller for up to 8-Zones - Main Image
Optimal Audio ZonePad 8 8 Touchscreen Wall Controller for up to 8-Zones - Image 1
Optimal Audio ZonePad 8 8 Touchscreen Wall Controller for up to 8-Zones - Image 2
Price:
RRP: £900.00 inc VAT
Code:
OPAZONEPAD8
Manufacturer Code:
ZONEPAD8
Brand:
Optimal Audio

Quantity required:

Main Features

  • 8-inch tempered glass touch panel
  • Durable and impact-resistant
  • Simple installation
  • Auto-detection of Zone controllers
  • Flexible mounting options
  • Easy selection and volume control of playback sources and microphones across eight zones
Share:

ZonePad 8 8" Touchscreen Wall Controller for up to 8-Zones

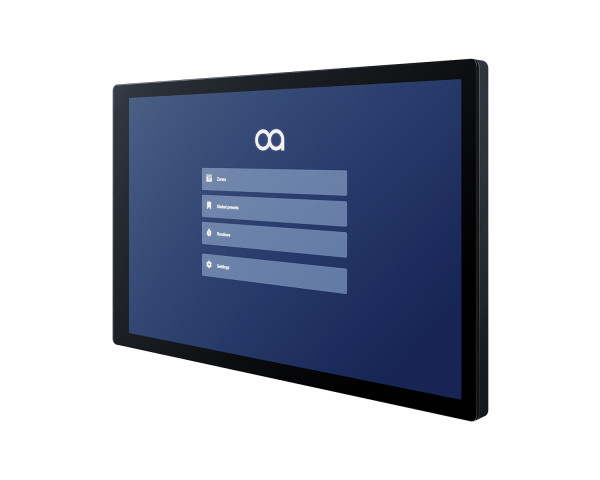

ZonePad 8 is an elegant wall-mounted touchscreen controller, providing users with clear and intuitive access to the controls of up to eight zones within an Optimal Audio commercial audio system. With a vibrant 8-inch IPS touch display and tempered glass capacitive touch panel, ZonePad 8 offers a sophisticated and user-friendly interface, providing users with the ability to operate complex audio systems effortlessly.

ZonePad 8 enables easy selection and volume control of playback sources and microphones across eight zones from one central position, making it ideal for dynamic commercial environments. Its seamless integration with Optimal Audio Zone controllers, powerful quad-core processor, and secure design ensures reliable and responsive control tailored to any venue’s unique needs.


Power is delivered via POE from a compatible router or switch. For venues where the installer cannot run cables, ZonePad 8 can be powered remotely and connect to a Zone controller via WIFI using the optional accessory.

Product Features

  • 8-inch tempered glass touch panel
  • Durable and impact-resistant
  • Simple installation
  • Auto-detection of Zone controllers
  • Flexible mounting options
  • Easy selection and volume control of playback sources and microphones across eight zones

Product Specifications

  • Type:  8 zone touchscreen wall controller
  • Display:  8-Inch, IPS, Capacitive, 10 multi touch points, tempered glass, impact resistant to IK2 standard
  • Resolution:  1280 x 800, 189 DPI
  • WebApp System Connection:  Ethernet via RJ45 adaptor / Wireless
  • Power:  PoE or optional 12V adaptor
  • Computing:
    • Allwinner A133
    • Quad-Core Cortex-A53 @ 1.5GHz
    • 2GB RAM
    • OS – Android 11
  • Enclosure:  Satin finished ABS, UL94, V0 rated material
  • Colour:  Black
  • Mounting System:  Supplied with surface mount plate, compatible with EU, US, and UK back boxes
  • Dimensions:  (W) 189mm x (H) 119mm x (D) 15mm
  • Weight:  0.32kg (0.70 lbs)
